Using TSO Commands from CBT

June, 2020



There are quite a few very useful TSO command processors that may be used on MVS 3.8j running under Hercules to make the TSO user experience easier and more enjoyable.  The files necessary to install the TSO command processors and, many times, the TSO help information, have been pulled from various versons of the CBT tape, from 249 to the present version.  If you have a current version of the SYSCPK 3350 DASD volume installed on your system, I have added the jobstreams in SYSC.CBT.SOURCE to install the TSO command executable and help onto your system.  I have created this page to share some information about these TSO commands and how to use them.

Note:  These commands are not installed on your system, ready to use, just because you have installed the latest version of SYSCPK which contains the source for the commands.  For any particular command to function on your system, you must submit the installation jobstream from SYSC.CBT.SOURCE.  Each jobstream installs the load module(s) for the single command contained in the SYSC.CBT.SOURCE member, along with the help text.  The load module(s) for the command are installed into SYS2.CMDLIB and the help text is installed into SYS2.HELP.  The TSO commands cannot be executed from SYSCPK directly.

ALIST
ALLOCA
BLKDISK
CATLG
DD
DDUCB
DTAPES
DUDASD
FIND
FINDFILE
FREEALL
INSTREAM
LISTDD
LISTSPC
LISTVOL
LM
MEMBER

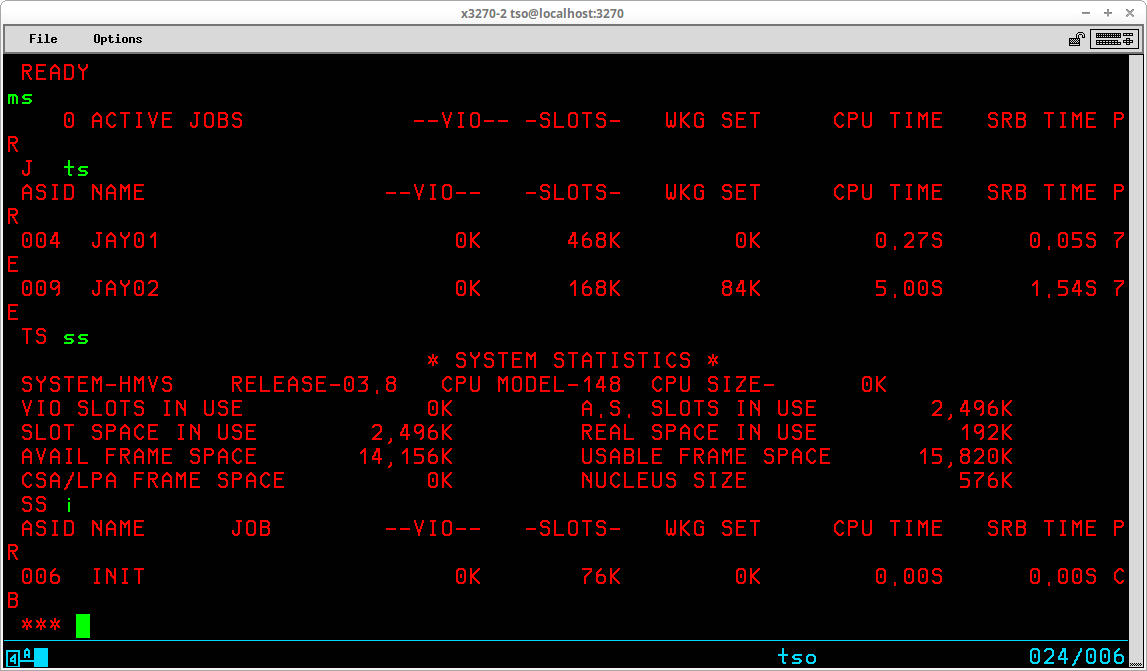

MS
PDSBLKS
PRINTOFF
PRINTON

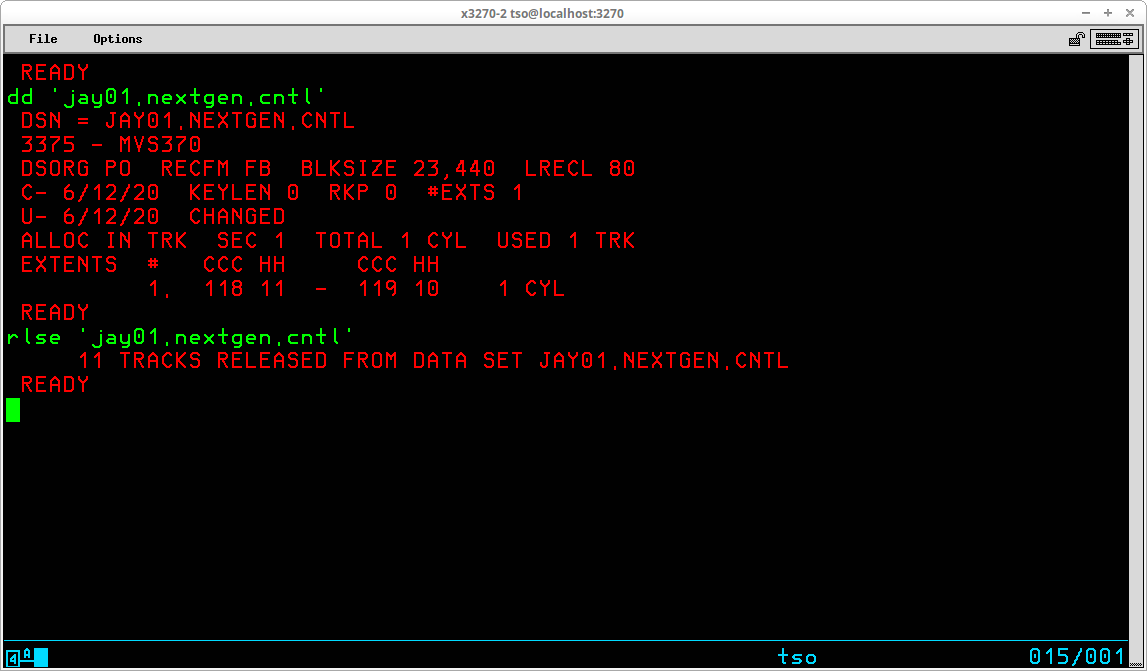

RLSE
SCRATCH

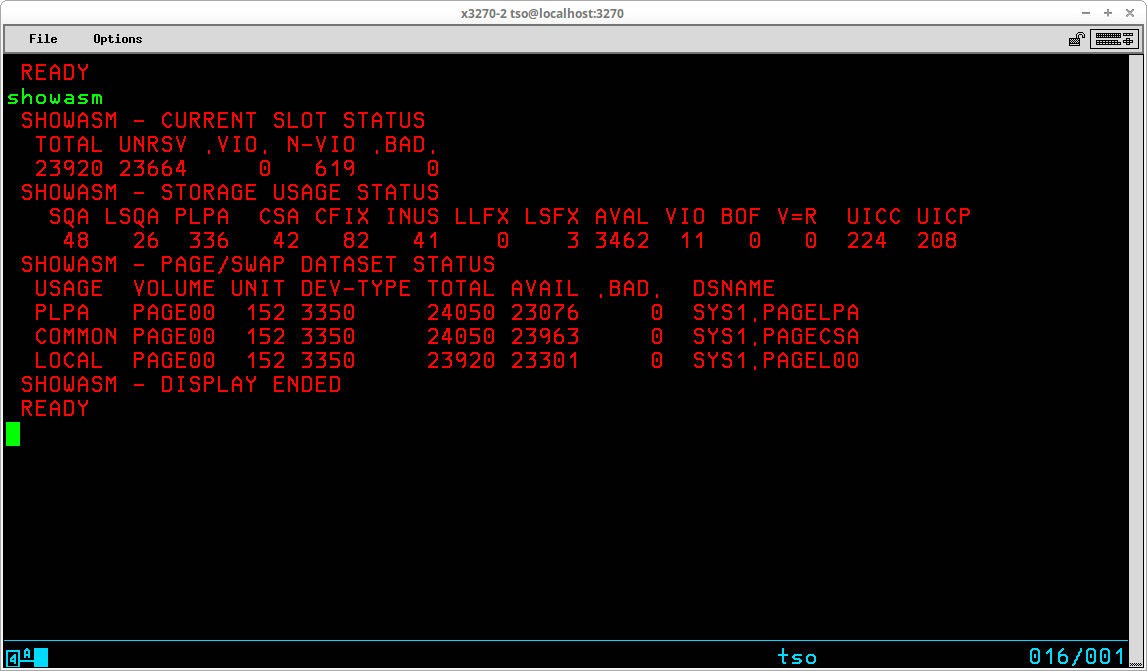

SHOWASM
SHOWDS

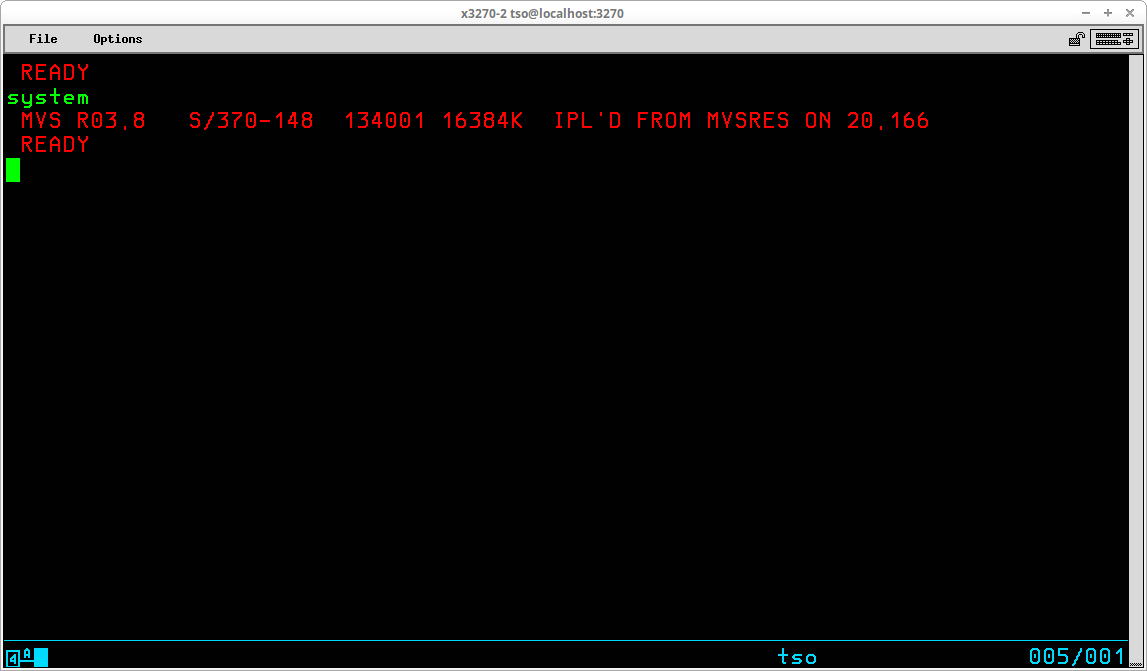

SYSTEM
UNCATLG
VOLS
VTOC
WHOHAS

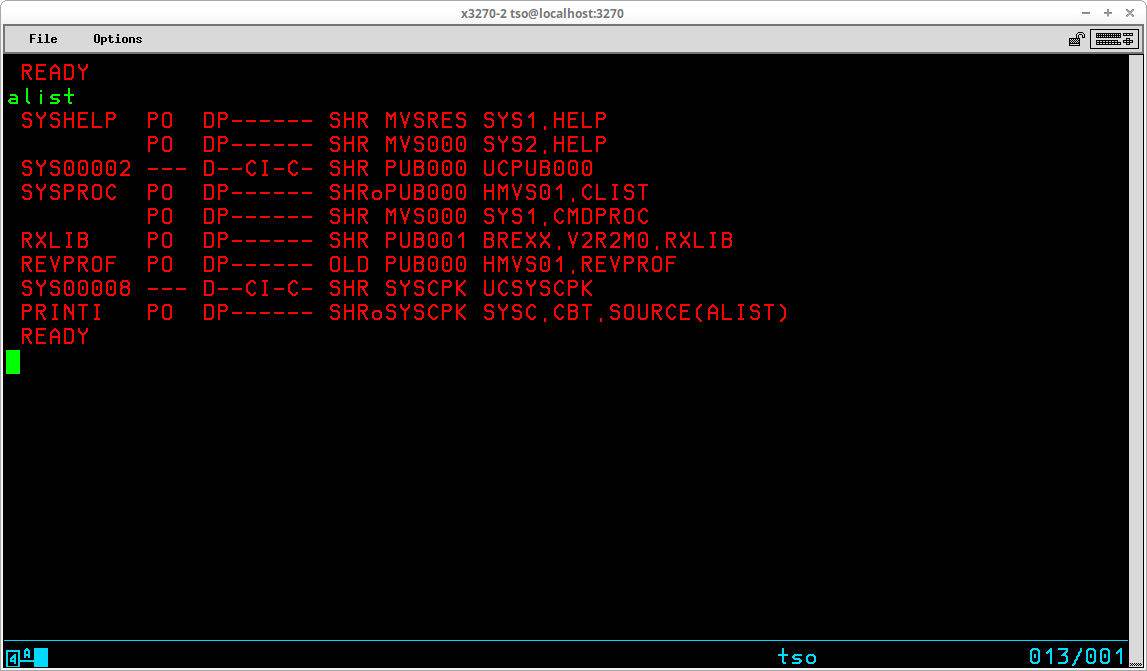

ALIST - Source: CBT V498 File #830

ALIST provides a better, or at least a different view of allocated files than the standard LISTALC command:

The ALIST command will list all allocated files for your TSO session in the format:

DDNAME   DSO FFFFFFFF DSPoVVVVVV DSNAME
|        |   |        |   |      |
|        |   |        |   |      +Dataset name
|        |   |        |   +Volume
|        |   |        +Disposition (followed by lowercase o if open)
|        |   +Flags (see below)
|        +Organization
+DD Name

Flags indicate: FFFFFFFF
                ||||||||
                |||||||J-JOBCAT/STEPCAT dataset
                ||||||C-dataset is a catalog
                |||||V-VIO dataset
                ||||I-dataset is in use
                |||C-convertible
                ||D-dynamically converted
                |P-permanently allocated
                D-dynamically allocated

ALIST takes no operands.

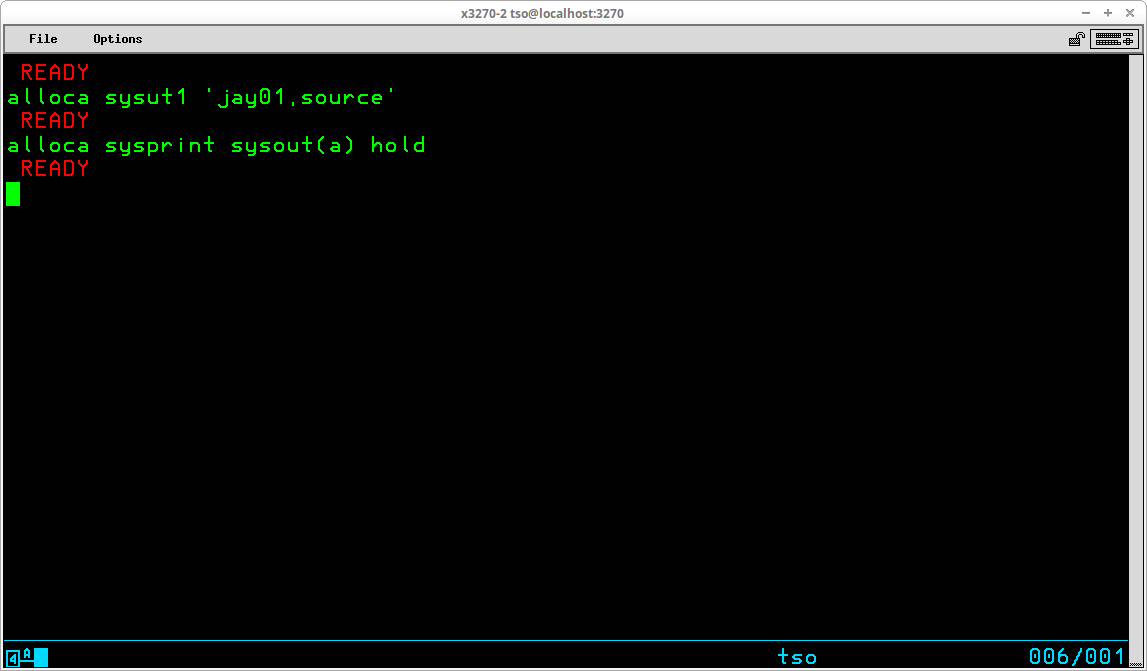

ALLOCA - Source: CBT V249 File #300

ALLOCA is like a shorthand ALLOC command.  Note, this command was called DD (with a DDN alias) on the CBT tape, but there was already a DD TSO command installed on my system, and probably on a lot of other systems, too.  So I renamed it ALLOCA, which I think of as ALLOC Alias.

It is similar to the standard TSO ALLOC command, except the filename (DD Name) and dataset name are required positional operands instead of keyword operands.  For example, instead of typing:

ALLOC FI(SYSPROC) DA(CLIST) SHR

you can type:

ALLOCA SYSPROC CLIST

If the filename (DD Name) is currently allocated, it will be freed and reused.

Not all operands of ALLOC are availabe in the ALLOCA command.  Some operands are new functions not available in the ALLOC command.

Syntax:

     ALLOCA 'FILENAME' 'DSNAME'  SHR/OLD/MOD/NEW  USING('ATTR')
                                 UNIT('UNITNAME') VOLUME('VOLUME')
                                 SPACE('PRIME','SEC')  DIR('NUMBER')
                                 TRACKS/CYLINDERS/BLOCKS('SIZE')
                                 DATASET  FORM('ID')  FCB('ID') HOLD
                                 COPIES('NUMBER')  DEST('ID')
                                 RECFM('X')  LRECL('N') BLKSIZE('N')
                                 DSORG(PS/PO/DA/PSU/POU/DAU)
REQUIRED - 'FILENAME', 'DSNAME'
DEFAULTS - SHR (UNLESS SPACE, DIR, OR TRACKS/CYL/BLOCKS SPECIFIED,
               IN WHICH CASE THE DEFAULT IS NEW)
           FOR NEW DATA SETS, IF 'SPACE' IS NOT SPECIFIED AND
           SPACE TYPE (TRACKS, CYL, BLOCK) IS NOT SPECIFIED, THEN
           THE SYSTEM DEFAULT SPACE VALUES WILL BE USED.
           THESE ARE CURRENTLY SPACE(10,50) BLOCKS(1000) RLSE.

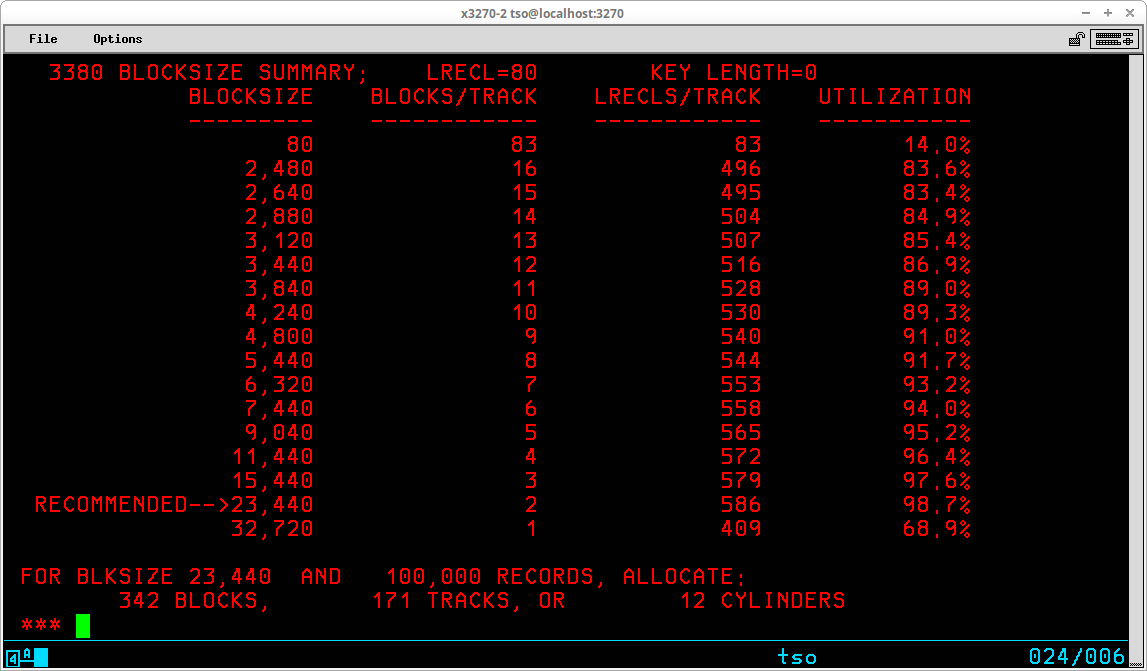

BLKDISK - Source: CBT V597 File #296

BLKDISK computes optimum block sizes for DASD datasets.  The load module is BLKDISK, but aliases are assigned for each DASD type you expect to use in your system.  There are also help members created for each of the aliases.

The report for the given LRECL includes a range of possible blocksizes and a recommended optimum blocksize to use.

The recommended blocksize value is for datasets in which the predominant access is sequential; for datasets where random access time is critical or the usual access is random, a small blocksize (500-2000 bytes) should probably be used.  The recommended blocksize will usually tend to be near a half-track figure as this is considered to be the most efficient in terms of the trade-offs among buffer size, secondary storage requirements, channel use, number of input/outputs and overall processing time.  This figure is only a general guide; for maximal efficiency considering other factors, study the generated blocksize summary report or a track capacity report.

The program's recommendations assume a fairly large amount of data is to be stored; data sets which occupy only a few tracks should probably be placed in partitioned datasets.  In cases where this is not feasible, the use of a small blocksize (2400-4000 bytes) may be a good alternative practice.

Syntax:

        BLK????  'LRECL'  KEYLENGTH('INTEGER')
                          TRACKCAP / NOTRACKCAP
                          BLKSIZE('INTEGER')
                          NUMBER('INTEGER') / RECORDS('INTEGER')
                          VERIFY
 REQUIRED - LRECL
 DEFAULTS - KEYLENGTH(0),
            NOTRACKCAP,
            BLKSIZE(RECOMMENDED VALUE),
            NUMBER(100000)
OPERANDS -
		 'LRECL'  - THE LOGICAL RECORD LENGTH OF THE DATA WHICH IS TO BE
		            PLACED IN THE DATA SET.
		 KEYLENGTH('INTEGER')
		          - THE KEY LENGTH, IN BYTES, OF THE KEYS TO BE USED IN THE
		            DATA SET.  THE MAXIMUM LEGAL KEY LENGTH IS 255.
		 TRACKCAP
		          - SPECIFIES THAT A TRACK CAPACITY REPORT IS TO BE PROVIDED
		            FOR THE DEVICE USING THE SPECIFIED (OR DEFAULT) KEY LENGTH.
		 NOTE THAT A TRACK CAPACITY REPORT IS ALSO PROVIDED IF
	         NOTRACKCAP IS NOT SPECIFIED AND LRECL EXCEEDS THE MAXIMUM
	         BLOCKSIZE FOR A TRACK OR BLKSIZE EXCEEDS THE MAXIMUM
	         BLOCKSIZE FOR A TRACK.

 		 NOTRACKCAP
		           - SPECIFIES THAT A TRACK CAPACITY REPORT IS NOT DESIRED.

		 BLKSIZE('INTEGER')
		           - THE BLOCKSIZE TO USE FOR THE ALLOCATION COMPUTATION; IF
		             BLKSIZE IS NOT ENTERED (OR ZERO IS ENTERED), THE PROGRAM'S
		             RECOMMENDED BLOCKSIZE WILL BE USED.

		 NUMBER('INTEGER')
		           - THE NUMBER OF LOGICAL RECORDS THAT WILL BE IN THE DATA SET.

		 RECORDS('INTEGER')
		           - THE NUMBER OF LOGICAL RECORDS THAT WILL BE IN THE DATA SET.

		 VERIFY    - SPECIFIES THAT THE MVS "TRKCALC" ROUTINE IS TO BE USED TO
		             VERIFY TRACK CAPACITY CALCULATIONS.  IF VERIFY IS USED,
		             THE NUMBER OF CALLS TO "TRKCALC" TO DETERMINE A TRACK
		 NOTE: WITH VERIFY ON, A MINIMUM OF 34 CALLS IS REQUIRED TO
		       DETERMINE A TRACK CAPACITY TABLE; OTHERWISE A MINIMUM OF
		       17 CALLS IS REQUIRED TO DETERMINE THE TRACK CAPACITY TABLE.
	               CAPACITY TABLE IS OUTPUT AT THE END OF THE OUTPUT.

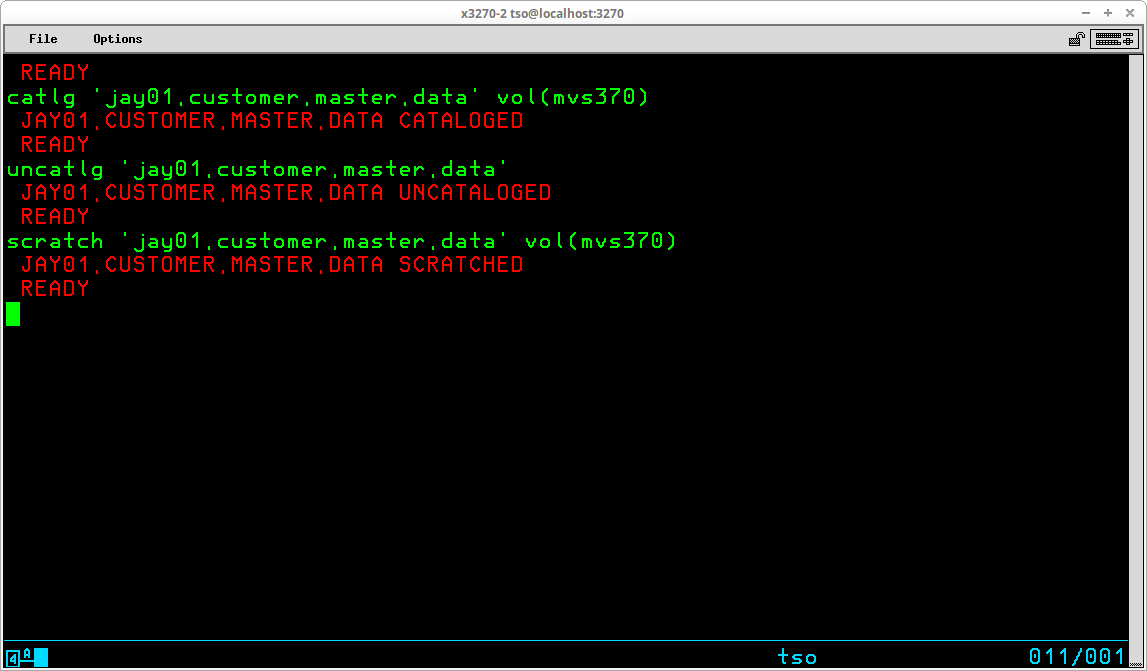

CATLG (also UNCATLG and SCRATCH) - Source: CBT V430 File #163

CATLG performs CATLG, UNCATLG, and SCRATCH functions similar to IEHPROGM.

Syntax:

      CATLG  dsname                      REQUIRED
             VOL(volser)                 REQUIRED
             UNIT(unitname)              OPTIONAL

OPERANDS -
	DSNAME
           - REQUIRED.  DATASET NAME TO BE CATALOGED.  NORMAL TSO
             DATASET NAMING CONVENTIONS APPLY.

	VOL(volser)
           - REQUIRED.  VOLUME SERIAL YOU WANT THE DATASET CATALOGED
             ON.

	UNIT(unitname)
           - OPTIONAL.  IF THE VOLUME SERIAL IS THAT OF A CURRENTLY
             MOUNTED DIRECT-ACCESS VOLUME, THE DEFAULT VALUE IS
             TAKEN FROM THE VOLUME'S UCB.  OTHERWISE THE OPERAND
             IS REQUIRED.

      SCRATCH dsname                      REQUIRED
              VOL(volser)                 OPTIONAL

OPERANDS -
	DSNAME
           - REQUIRED.  DATASET NAME TO BE SCRATCHED.  NORMAL TSO
             DATASET NAMING CONVENTIONS APPLY.

	VOL(volser)
           - OPTIONAL.  VOLUME SERIAL YOU WANT THE DATASET SCRATCHED
             FROM.  IF NOT SPECIFIED, THE dataset MUST BE CATALOGED,
             AND THE VOLUME SERIAL IS TAKEN FROM THE CATALOG ENTRY.

      UNCATLG dsname                      REQUIRED

OPERANDS -
	DSNAME
           - REQUIRED.  DATASET NAME TO BE SCRATCHED.  NORMAL TSO
             DATASET NAMING CONVENTIONS APPLY.




DD - Source: CBT V430 File #163

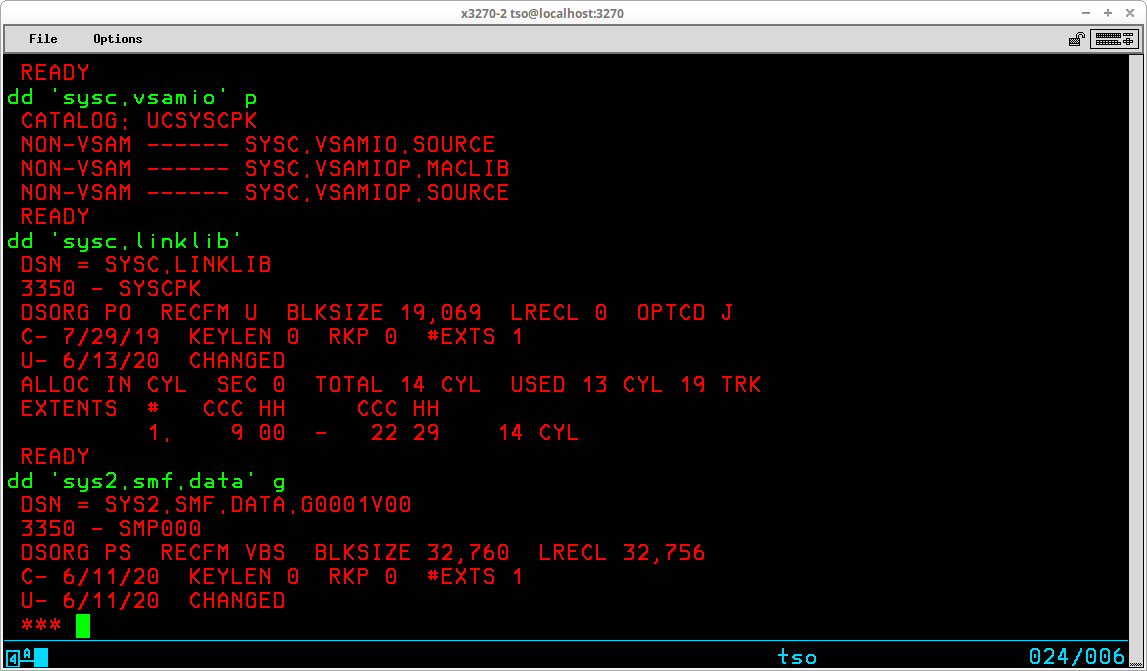

The DD command displays information on a dataset.  At a minimum the catalog information is displayed (Volume Serial and device types), and if the dataset is on a mounted DASD, device information from the dataset's DSCB is displayed.

Syntax:

         DD 'DATASET-NAME'  PARTIAL OR
                            GENERATION(number) OR
                            VOLUME(name)

  DEFAULTS -  DATASET-NAME DEFAULTS TO TSO USERID PREFIX

  ALIAS    -  DDX  (DOES CLEAR COMMAND BEFORE DISPLAY)

  ABBREVIATIONS -  PARTIAL    ===> P
		   GENERATION ===> G
                   VOLUME     ===> V

OPERAND -
	  'dataset-name'
        	 - SPECIFIES THE COMPLETE OR PARTIAL NAME OF THE DATA SET
	           WHICH IS TO BE SAERCHED FOR.

	  PARTIAL             - SPECIFIES A PARTIAL DATA SET NAME SEARCH
	  GENERATION(number)  - LISTS DATA SET' DSCB INFORMATION FOR THE
                                GENERATION LEVEL SPECIFIED.
	  VOLUME(name)        - SPECIFIES THE VOLUME NAME ON WHICH THE DATA SET
	                        RESIDES.  IF A VOLUME NAME IS ENTERED, SYSALLDA IS
		                ASSUMED AS THE UNIT NAME; OTHERWISE, THE UNIT NAME
                		FROM THE CATALOG IS USED.

		NOTE:  THIS PARAMETER SHOULD BE USED IF THE DATA SET
                IS NOT CATALOGED OR IF THE CATALOG ENTRY IS NOT TO BE USED.





DDUCB - Source: NaSPA 1998

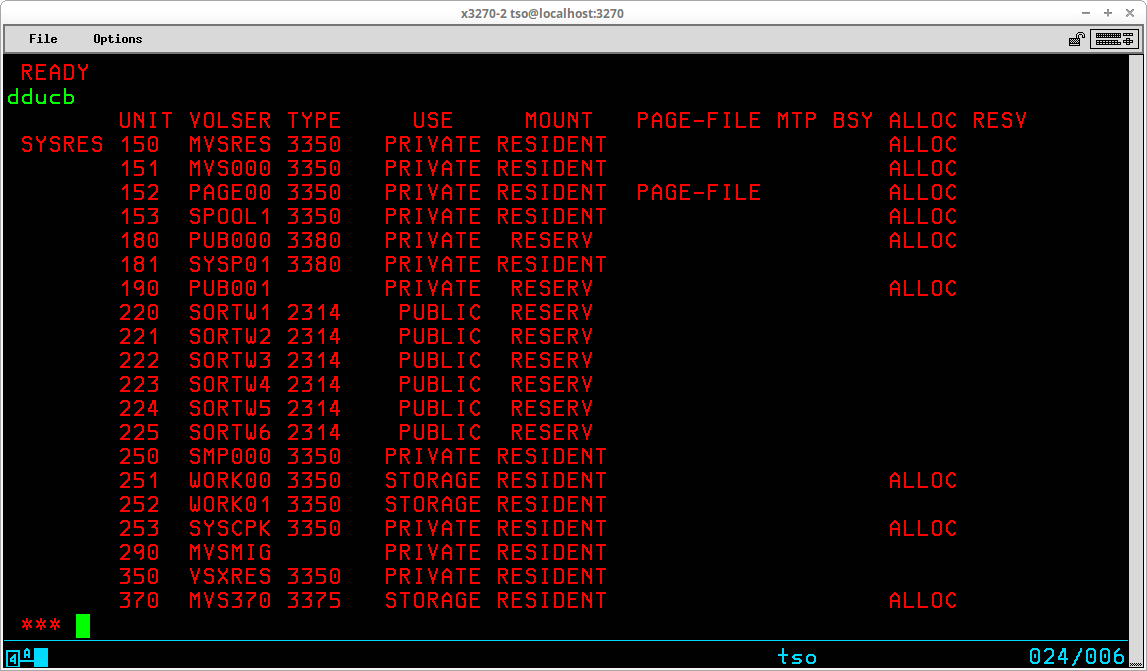

The DDUCB command will display the attributes of all online DASD devices. It scans the UCB's and displays such information as Unit Address, Vol Serial, Mount Attributes, Reserves, Etc.

Syntax:  DDUCB (no operands)

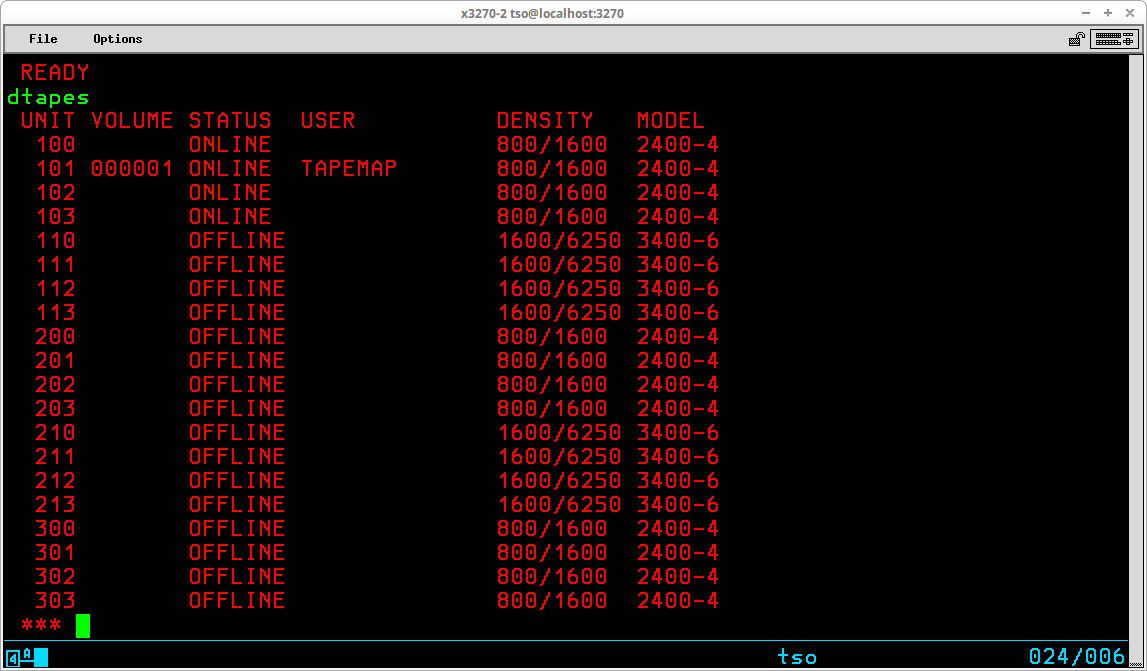

DTAPES - Source: CBT V428 Overflow File #301

The DTAPES command displays all tape devices defined in the system.

Syntax: DTAPES (no operands)

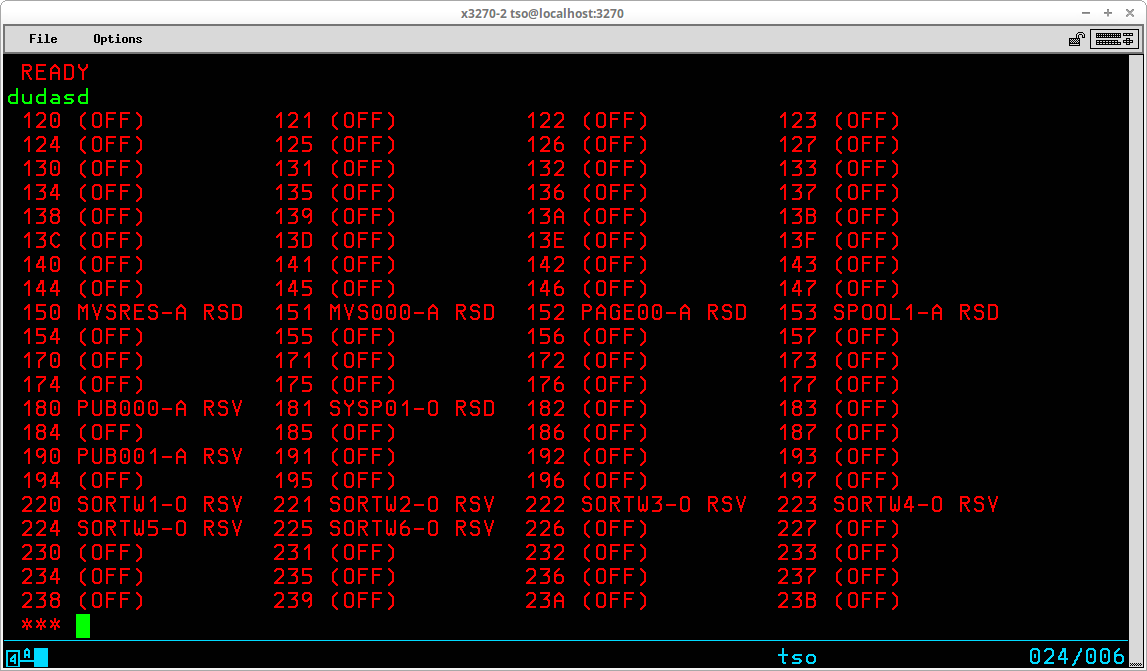

DUDASD - Source: CBT V249 File #300

The DUDASD command displays all DASD devices defined in the system.  If the volume is online, additional information is displayed for the DASD address: Volume Serial Number, Allocation Status (O=unallocated, A=allocated, P=offline pending), Reserved if the TSO system has successfully reserved the device, and Status (RSV=reserved on the system, RSD=system resident)

Syntax: DUDASD (no operands)

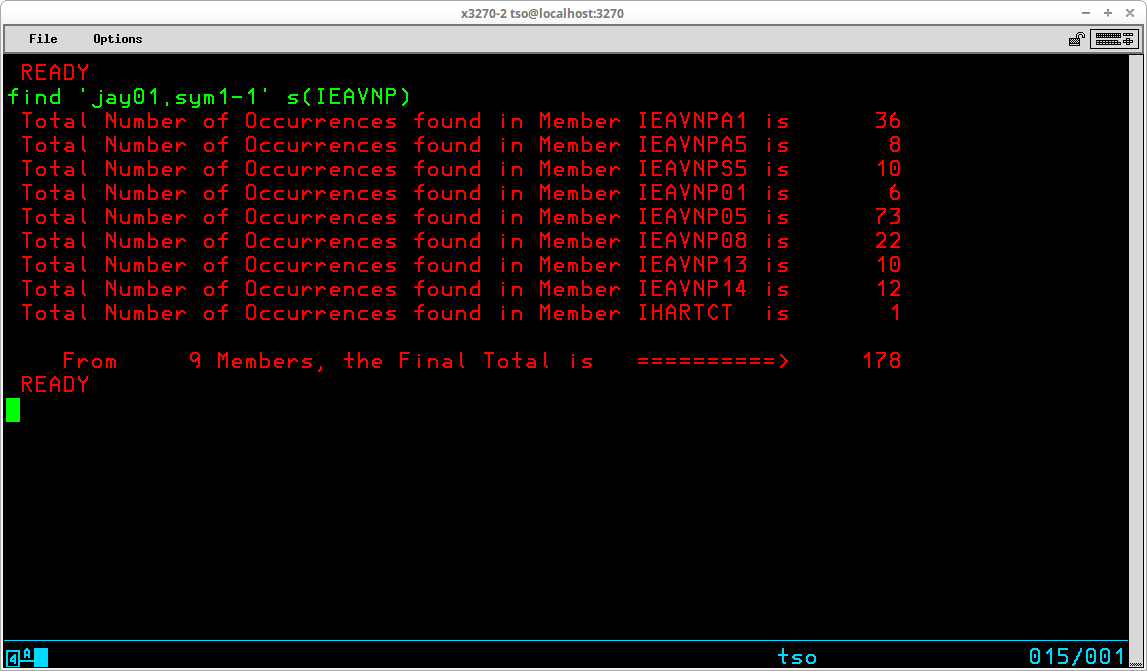

FIND - Source: CBT V430 File #166

The FIND command searches for a character string in a PDS (Partitioned Dataset) and displays the number of occurrences found in each member.

Syntax:

          FIND 'DSNAME' S('CHARACTER STRING')
                        GROUP(XX)
                        LOWER
                        QUICK

	REQUIRED - 'DSNAME'  S('Character string')
	DEFAULTS -  None

OPERAND -

	'DSNAME'      - Name of the partitioned Data Set to be
        	        searched.  Omit the single quotes and the first
                	data set qualifier if it is your own data set.

	S('Character string')
               	      - The string of characters to be searched for.  Could be a
                	program name, data set name, or text data, etc..

	GROUP(XX)     - Optional Keyword.  Used to limit the search on only
                	members having name beginning with XX.

	LOWER 	      - Optional Keyword.  Used to search for lowercase TEXT
	                character string.  If this keyword is not used, the
        	        character string will be converted into uppercase before
	                the search is being performed.

	QUICK         - Optional Keyword.  Used to stop command from reading
                        the entire member after the first occurrence found.
                        Process continues to the next member.

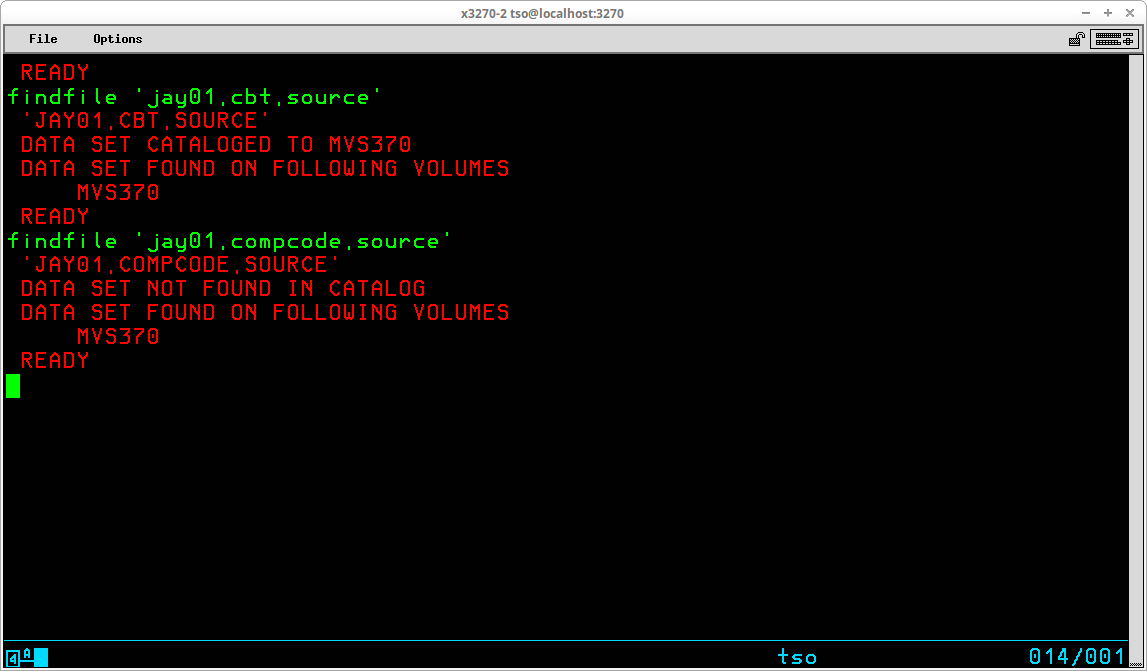

FINDFILE - Source: CBT V249 File #300

The FINDFILE command displays where a dataset is catalogued and lists all mount DASD volumes on which the dataset resides.

Syntax:

     FINDFILE 'DSNAME'

            ALIAS  -  LOCDSN

OPERANDS:
               DSNAME - THE DATA SET NAME YOU WISH TO LOCATE
                        USING STANDARD TSO NAMING CONVENTIONS.

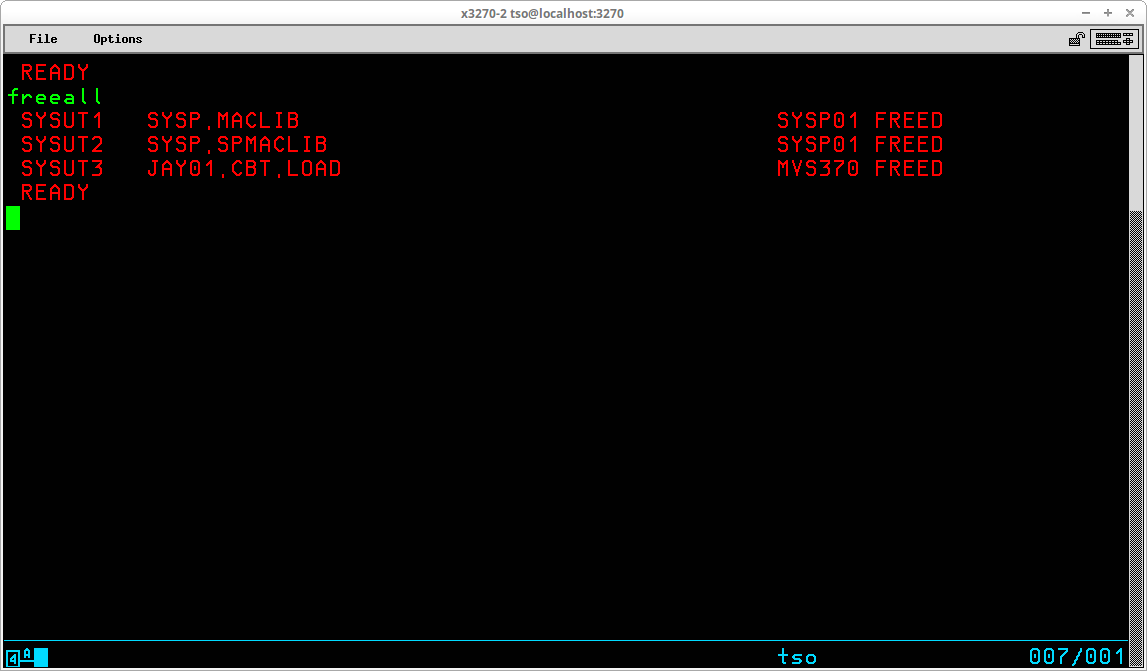

FREEALL - Source: CBT V430 File #300

The FREEALL command is used to free all dynamically allocated datasets which have been allocated by a TSO user.  It will free all datasets which:

Syntax:  FREEALL  (no operands)


INSTREAM - Source: CBT V430 File #300

The INSTREAM command allocates a temporary dataset for utility control statements, and copies subsequent CLIST or terminal input to that dataset.  The copying continues until an 'END' statement is encountered.  This is useful in CLISTs that call utility programs that require 80-character control statement input.  Since the control statements are part of the CLIST, their contents can be set by variables in the CLIST.

Syntax:

	INSTREAM FILE('DDNAME') END('STRING') BLKSIZE('SIZE')
	         REUSE CONTIN INSERT

	REQUIRED - NONE

	DEFAULTS - FILE(SYSIN) END(END) BLKSIZE(400)

OPERANDS -
	FILE('DDNAME') - THE DDNAME TO WHICH THE NEW TEMPORARY
        	         DATA SET IS TO BE ALLOCATED.  IF NOT SPECIFIED,
	                 FILE(SYSIN) IS USED.  THE DDNAME MUST NOT BE
	                 CURRENTLY ALLOCATED, UNLESS 'REUSE' IS SPECIFIED.

	REUSE          - THIS KEYWORD INDICATES THAT IF THE DDNAME IS
	                 CURRENTLY ALLOCATED, IT IS TO BE FREED AND THEN
            	         RE-ALLOCATED TO THE NEW TEMPORARY DATA SET.

	BLOCK('SIZE')  - THE BLOCKSIZE OF THE TEMPORARY DATA SET.
 	                 IF NOT SPECIFIED, 400 IS USED.

	END('STRING')  - THE STRING THAT WILL REPLACE 'END' AS THE
	                 DELIMITER OF THE INPUT DATA.

	INSERT         - THIS KEYWORD SPECIFIES THAT IF AN INPUT LINE
	                 STARTS WITH THE CHARACTERS 'I' OR 'IN' OR 'INSERT'
            	         FOLLOWED BY A BLANK, ONLY THE DATA FOLLOWING THE
	                 BLANK WILL BE COPIED.  THIS ALLOWS YOU TO INDENT
	                 YOUR CLIST AND STILL CONTROL LEADING BLANKS IN YOUR
	                 INPUT DATA.

	CONTIN         - THIS KEYWORD INDICATES THAT THE FIRST BYTE OF DATA
	                 IN EACH INPUT LINE IS TO BE PUT IN COLUMN 72, AND
            	         BYTES 2 THRU 72 SHIFTED OVER TO 1 THRI 71.
			 USEFUL IF THE UTILITY PROGRAM USES COLUMN 72
		         FOR CONTINUATION.

	NOTES	       - THIS IS NOT AN OPERAND, BUT SOME AIDS TO USING
	                 THE INSTREAM COMMAND.
	       ... LEADING BLANKS ...
          	         LEADING BLANKS ARE NORMALLY REMOVED FROM A
	                 CLIST STATEMENT AT THE TIME IT IS EXECUTED.
	                 THIS CAN BE PREVENTED BY PLACING THE STATEMENT
	                 BETWEEN A 'DATA' AND 'ENDDATA' STATEMENT (SEE
	                 THE TSO COMMAND LANGUAGE REFERENCE MANUAL).
	                 THESE TWO STATEMENTS WILL BE INVISIBLE TO INSTREAM
	                 AND NOT COPIED TO THE TEMPORARY DATA SET.
	                 ANOTHER WAY TO COPY A LEADING BLANK IS TO USE THE
	                 'INSERT' KEYWORD AND BEGIN EACH INPUT LINE WITH
	                 THE WORD 'INSERT' FOLLOWED BY A BLANK FOLLOWED BY
	                 YOUR LEADING BLANK(S).  THIS GIVES YOU THE FREEDOM
 	                 TO CODE YOUR CLIST WITH INDENTATION FOR READABILITY.

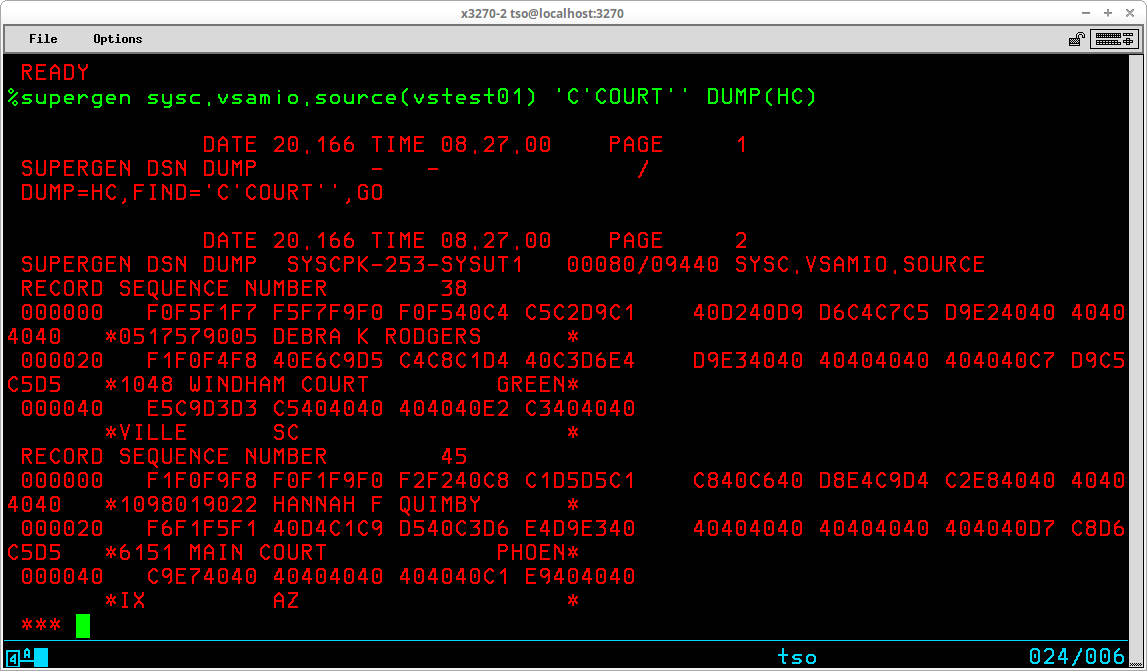

An example of a CLIST that uses INSTREAM:

PROC 2 INFILE FINDSTR DUMP(Y)
FREE FI(SYSIN)
FREE FI(SYSUT1)
FREE FI(SYSUT2)
FREE FI(SYSPRINT)
ALLOCA SYSUT1 &INFILE SHR
ALLOCA SYSUT2 DUMMY
ALLOCA SYSPRINT *
INSTREAM
DUMP=&DUMP.,FIND=&FINDSTR.,GO
END
CALL 'SYSC.LINKLIB(SUPERGEN)'

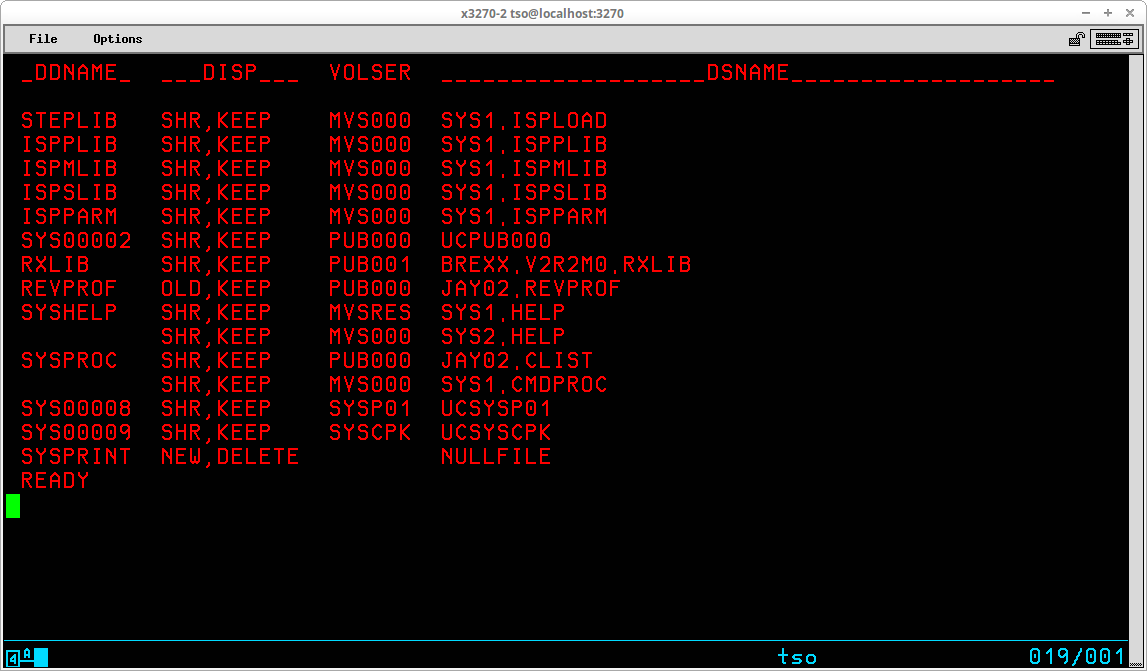

LISTDD - Source: CBT V498 File #830

The LISTDD command will list the attributes for the dataset whose DD Name is specified or for all allocated DD Names.  Fields displayed are DD Name, disposition, Volume Serial Number, and dataset name.

Syntax:

          LISTDD <DDNAME>

OPERANDS -
          <DDNAME> | *

          <DDNAME> INFORMATION WILL BE DISPLAYED FOR THE SPECIFIC
                   DDNAME ENTERED

          *        INFORMATION WILL BE DISPLAYED FOR ALL ALLOCATED

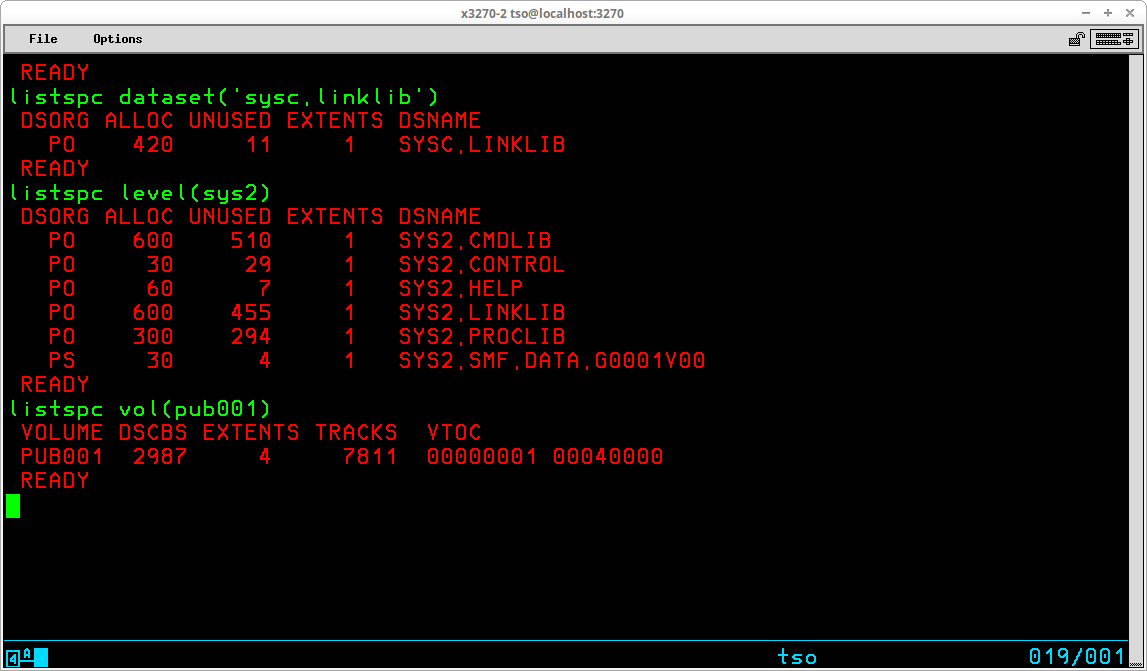

LISTSPC - Source: CBT V129 File #49

The LISTSPC command lists the tracks allocated, tracks unused, and number of extents for catalogued disk datasets, individually or in small groups.

Syntax:

    LISTSPC   DATASET('DSNAME-LIST')  LEVEL('INDEX-LEVEL')
              VOLUME('VOLUME-LIST')  EXTENTS

    REQUIRED - DATESET('DSNAME') OR LEVEL('INDEX-LEVEL') OR
               VOLUME('VOLUME')

    DEFAULTS - NONE

OPERANDS -
	DATASET('DSNAME-LIST') -
        		       - SPECIFIES A LIST OF DATA SET NAMES ABOUT WHICH YOU WISH
		                 TO HAVE SPACE INFORMATION DISPLAYED.

	LEVEL('INDEX-LEVEL')   - SPECIFIES AN INDEX LEVEL IN THE CATALOG FOR
				 WHICH YOU WANT SPACE INFORMATION. THIS MAY BE
		                 A DSNAME CONTAINING ONE EMBEDDED ASTERISK.

	VOLUME('VOLUME-LIST')  - IF USED WITH THE DATASET PARAMETER, SPECIFIES THE
		                 VOLUME THE DATA SET RESIDES ON. NO CATALOG SEARCH
                		 WILL BE PERFORMED.
		                 IF SPECIFIED ALONE, SPECIFIES A LIST OF VOLUMES FOR
                		 WHICH FREE SPACE INFORMATION WILL BE PRODUCED.

	EXTENTS		      - IF SPECIFIED, THEN THE EXTENTS FOR EACH DATA SET WILL
                 		BE DISPLAYED WITH HEXADECIMAL ADDRESSES.

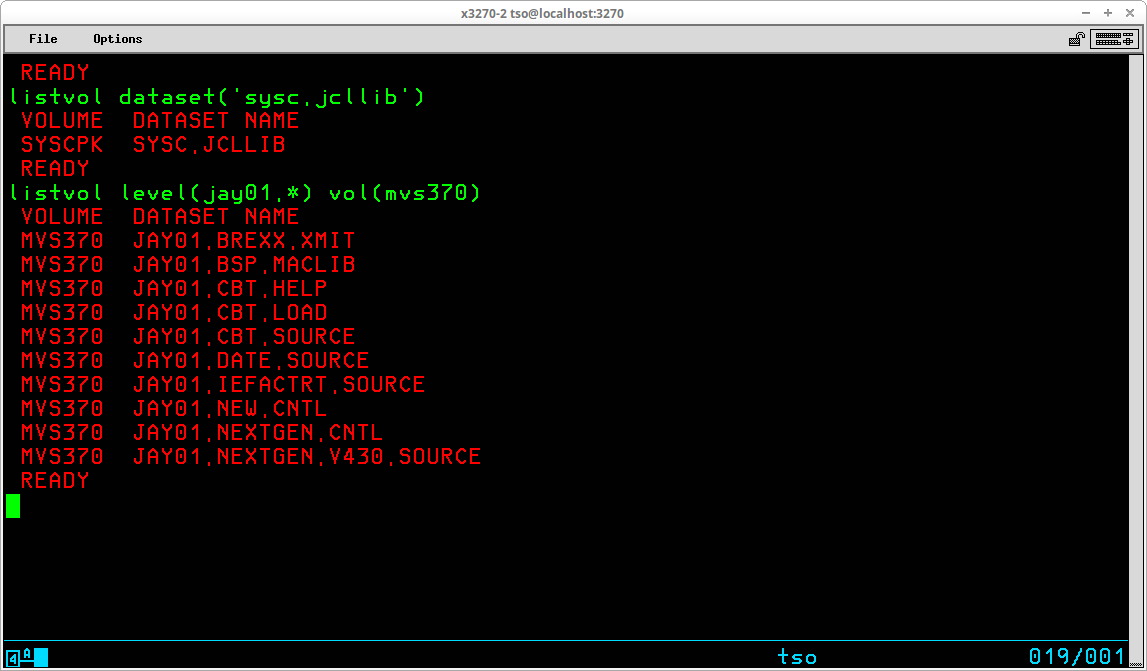

LISTVOL - Source: CBT V129 File #48

The LISTVOL command lists the volumes of catalogued datasets.

Syntax:

    LISTVOL   LEVEL('DSNAME')         DA('DSLIST')
              VOL('SER')

    DEFAULTS - LEVEL(USERID)

OPERANDS -
	LEVEL('DSNAME')   - SPECIFIES EITHER HIGHER LEVEL QUALIFIERS OF
                            CATALOG STRUCTURE OR CONTAINS EMBEDDED ASTERISK
                            AS PART OF THE NAME.
	DATASET('DSLIST') - SPECIFIES A DSNAME LIST FOR WHICH YOU DESIRE TO
                            HAVE VOLUME INFORMATION LISTED.

	VOLUME('VOLSER')  - SPECIFIES LEADING CHARACTERS OF VOLUME SERIAL.  ONLY
                            DATASETS CATALOGED ON VOLUMES BEGINNING WITH THE
                            SPECIFIED CHARACTERS WILL BE LISTED.

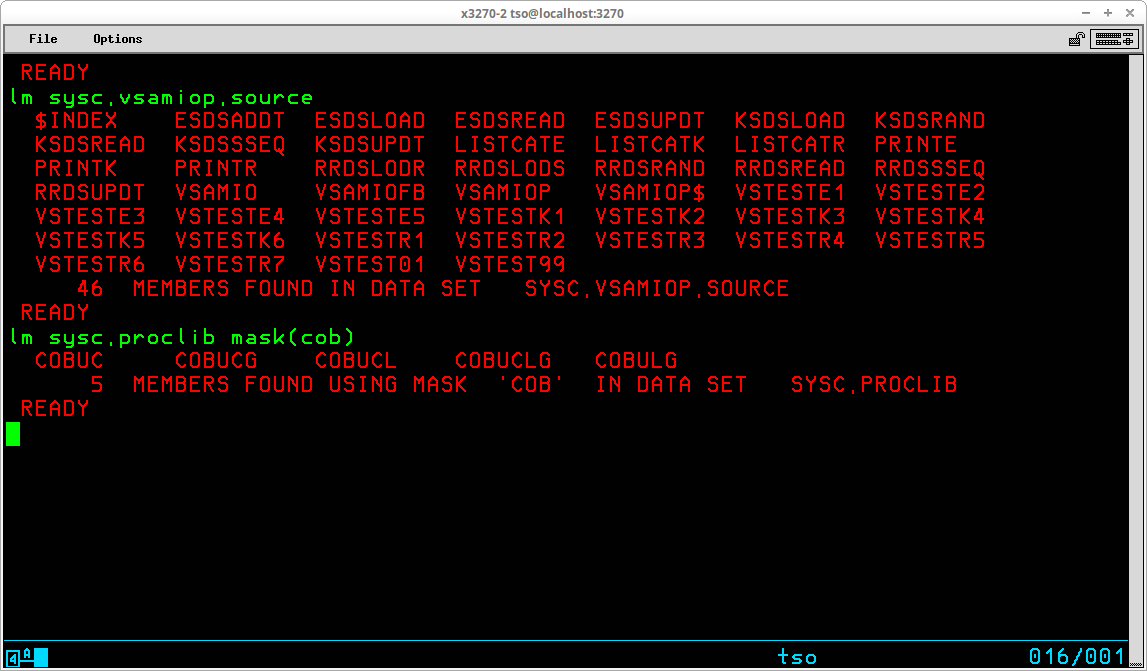

LM - Source: CBT V249 File #300

The LM command, alias is SHOWDIR, lists all or part of the directory of a partitioned dataset.  Return codes produced by LM are:

Syntax:

        LM  'DSNAME'   LINESIZE('SIZE')    MASK('MASK')
              DA('DSN')  ALIAS/NOALIAS

  REQUIRED - DSNAME

  DEFAULTS - LINESIZE=7    MASK=ALL        ALIAS

ALIAS    - SHOWDIR, LISTMEM

OPERANDS -
	   'DSNAME'         - THE PARTITIONED DATA SET FOR WHICH THE DIRECTORY
        	              LISTING IS REQUIRED.

	   LINESIZE('SIZE') - THE NUMBER OF MEMBER NAMES TO BE DISPLAYED
           	              ON A SINGLE LINE. MAXIMUM IS 9.
                   	      IF THE 'DA' OPTION IS TAKEN, THE FIRST
	                      MEMBER NAME ON EACH LINE WILL BEGIN IN
          	              POSITION 1.

	   MASK('MASK')    - AN OPTIONAL MASK OR PREFIX  USED AS A SEARCH MASK.
		             UP TO EIGHT CHARACTERS ON WHICH TO COMPARE
		             FOR EQUAL BEFORE PRINTING. AN ASTERISK (*), IN ANY
		             POSITION MAKES IT A NON-COMPARE POSITION.
		             EXAMPLES:
			               MASK(BPS)    WILL RETURN ANY MEMBER NAME
                        	                    THAT BEGINS WITH 'BPS'.
	                               PRE(*****XYS)  WILL RETURN ANY MEMBER NAME THAT
                                                      ENDS IN 'XYZ' IN COLUMNS 6-8.
		                       M(BPS****7)   WILL RETURN ANY MEMBER NAME THAT
                                                     BEGINS 'BPS' AND ENDS IN A '7'.

	   PREFIX('MASK') - SAME AS MASK PARAMETER

	   DA('DSN')      - WILL RETURN THE LIST OF MEMBER NAMES IN
		            A SEQUENTIAL DATA SET NAMED, 'USERID.(DSN).DATA'.
		            A DSNAME IN QUOTES WILL BE RESPECTED, AS WILL A VALID
		            QUALIFIER (ASM,CLIST,CNTL,COBOL,DATA,FORT,PLI OR SPIT).
		            THE DATA SET WILL HAVE SEQUENCE NUMBERS IN EDIT FORMAT.
		            NOTE - DA(*) WILL BE TREATED AS IF THE DA
	                    PARAMETER WAS NOT ENTERED AT ALL (OUTPUT WILL GO TO
	                    THE USER'S TERMINAL).

	   DS('DSN')      - SAME AS DA PARAMETER

	   ALIAS/NOALIAS  - 'NOALIAS' WILL SUPPRESS THE SPECIAL FORMATTING
		            GIVEN TO ALIAS NAMES. 'ALIAS' IS THE DEFAULT.
		            NOTE -- AN '*ORPHAN*' IS AN ALIAS NAME THAT
			    MATCHES NO MAIN MEMBER NAME.
		            A SPURIOUS *ORPHAN* WILL BE GENERATED WHEN
		            AN ALIAS MEMBER NAME MATCHES THE SEARCH MASK,
		            BUT THE MAIN NAME DOES NOT. ALSO, AN ALIAS WILL NOT
		            BE SHOWN IF IT DOES NOT MATCH THE SEARCH MASK
		            EVEN THOUGH THE MAIN MEMBER NAME MATCHES AND
		            IS DISPLAYED.

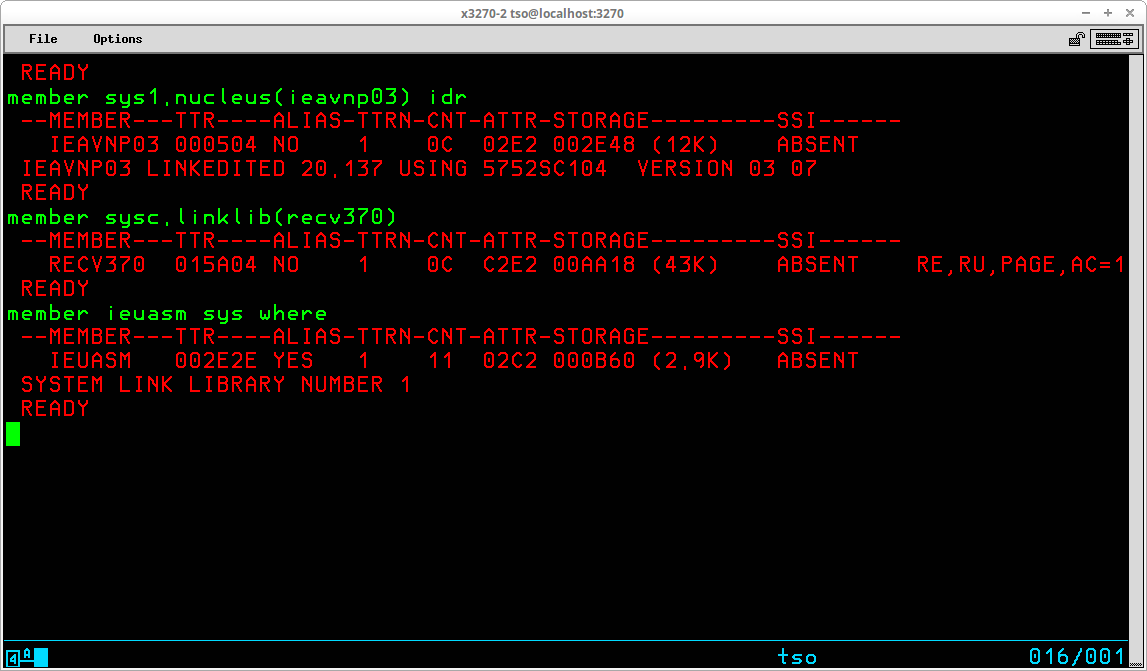

MEMBER - Source: CBT V430 File #300

The MEMBER command displays information about a member of a partitioned dataset from the PDS directory.

For members created by ISPF edit, the statistics in the directory are formatted.  For load modules, information from the directory is interpreted and formatted, including module size, attributes, and SSI information.  For load modules, information from the ESD and IDR records can be listed.  The command can also be used to search the system link libraries for a specified load module.

Syntax:

         MEMBER  'DSNAME(MEMBER)'  ESOTERIC  LIST  MAP  IDR  CSECT(ID)
                                   PLUS('MEMBERS')  DATA  OUTFILE('DD')
                                   UNIT('UNITNAME')  VOLUME('VOLSER')
OR
         MEMBER  'MEMBER'  SYS     ESOTERIC  WHERE
                                   PLUS('MEMBERS')  DATA  OUTFILE('DD')

  REQUIRED - 'DSNAME(MEMBER)'  (OR 'MEMBER' AND 'SYS')

  ALIAS    - MEM

OPERANDS -
	  'DSNAME(MEMBER)' THE DATA SET AND MEMBER TO BE DISPLAYED.
        	           (OR JUST A MEMBER NAME IF 'SYS' IS ALSO SPECIFIED).
	                   THIS OPERAND MAY OPTIONALLY BE A LIST IN PARENTHESES.

	  ESOTERIC - FOR LOAD MODULES, A SECOND LINE OF DIRECTORY
	             INFORMATION, WHICH IS RARELY OF INTEREST, IS TO
         	     BE DISPLAYED.

	  LIST     - FOR LOAD MODULES, THE FIRST 48 BYTES OF THE
                     TEXT WILL BE DISPLAYED.  USEFUL IF THE PROGRAM
                     HAD IDENTIFYING INFORMATION SUCH AS DATE-ASSEMBLED
                     IN ITS 'SAVE' MACRO.  NOT VALID WITH 'SYS'.

	  MAP      - FOR LOAD MODULES, THE CSECT NAMES FROM THE CESD
	             RECORD(S) WILL BE DISPLAYED.  NOT VALID WITH 'SYS'.

          IDR      - FOR LOAD MODULES, THE IDR RECORD CONTAINING THE
		     DATE OF LINKEDIT IS DISPLAYED.
                     IF IDR(ZAP) IS SPECIFIED, IDR ZAP RECORDS ARE DISPLAYED.
                     IF IDR(TRAN) IS SPECIFIED, IDR TRANSLATOR RECORDS, CON-
                     TAINING THE DATE OF ASSEMBLY OR COMPILATION, ARE DISPLAYED.
                     IDR(PLS) IS THE SAME AS IDR(TRANS), EXCEPT PLS TRANSLATOR
                     INFORMATION IS ALSO DISPLAYED.
                     IF IDR(IDENT) IS SPECIFIED, IDR IDENTIFY RECORDS, CREATED
                     BY THE LINKEDIT 'IDENTIFY' STATEMENT, ARE DISPLAYED.
                     IF IDR(SPACE) IS SPECIFIED, THE NUMBER OF AVAILABLE
                     SLOTS FOR ZAP ENTRIES IS DISPLAYED.
                     IF IDR(ALL) IS SPECIFIED, ALL IDR RECORDS ARE DISPLAYED,
                     BUT NOT THE ZAP SPACE AVAILABLE.  USE IDR(ALL SPACE).

	PLUS(MEMBERS) - ADDITIONAL MEMBER NAMES TO BE PROCESSED.

	CSECT(ID) - IF THE NAME OF A CSECT IS SPECIFIED HERE, THE
                    'MAP' AND 'IDR' INFORMATION WILL BE RESTRICTED TO
                    THE SPECIFIED CSECT.

	SYS      - THE 'SYS' KEYWORD INDICATES THAT THE FIRST
                   OPERAND IS A MEMBER NAME AND THE SYSTEM LINK LIBRARIES
                   (OR SESSION STEPLIB) ARE TO BE SEARCHED FOR IT.
                   THIS OPERAND CANCELS THE 'LIST', 'MAP' AND 'IDR' OPERANDS,
                   WHICH REQUIRE A DATA SET NAME IN THE 1ST OPERAND.

 	WHERE    - VALID ONLY WITH 'SYS', THIS CAUSES THE CONCATENATION
                   NUMBER OF THE LINKLIST (OR STEPLIB) LIBRARY TO BE
                   DISPLAYED.  USEFUL FOR DETERMINING WHICH LIBRARY
                   A MEMBER IS LOCATED IN.

	LOAD     - FOR LOAD MODULES, THE COMMAND WILL LOAD THE MEMBER INTO
                   MEMORY USING THE 'LOAD' MACRO, AND REPORT WHETHER IT WAS
                   SUCCESSFUL OR NOT.  USEFUL FOR CHECKING SYSTEM 106 ABENDS.

	DATA     - REQUESTS A RAW HEX DISPLAY OF THE DIRECTORY ENTRY.

	UNIT(UNIT) - FOR UNCATALOGED DATA SETS, THE UNIT TYPE.

	VOLUME(VOLSER) - FOR UNCATALOGED DATA SETS, THE VOLUME.

	OUTFILE(DD) - REDIRECTS THE DISPLAY TO THE FILE PRE-ALLOCATED TO
                      THE SPECIFIED DDNAME.




MS - Source: SHARE MVS MODS V80-007 07-28-1980 FILES #49/#51/#53

The MS (Master Summary) command displays MVS System information.

Syntax:

     MS
OPERANDS - THERE ARE NO OPERANDS FOR THE MS COMMAND.

SUBCOMMANDS

   SS - THE SS SUBCOMMAND DISPLAYS SYSTEM STATISTICS.

   LP - THE LP SUBCOMMAND DISPLAYS LINK PACK INFORMATION.

   TS - THE TS COMMAND DISPLAYS TSO STATISTICS.

   I  - THE I SUBCOMMAND DISPLAYS INITIATORS.

   J  - THE J SUBCOMMAND DISPLAYS JOBS.

   S  - THE S COMMAND DISPLAYS STARTED TASKS.

   T  - THE T SUBCOMMAND DISPLAYS A COUNT OF THE NUMBER OF TSO USERS.

   E  - THE E COMMAND EXITS FROM MS.

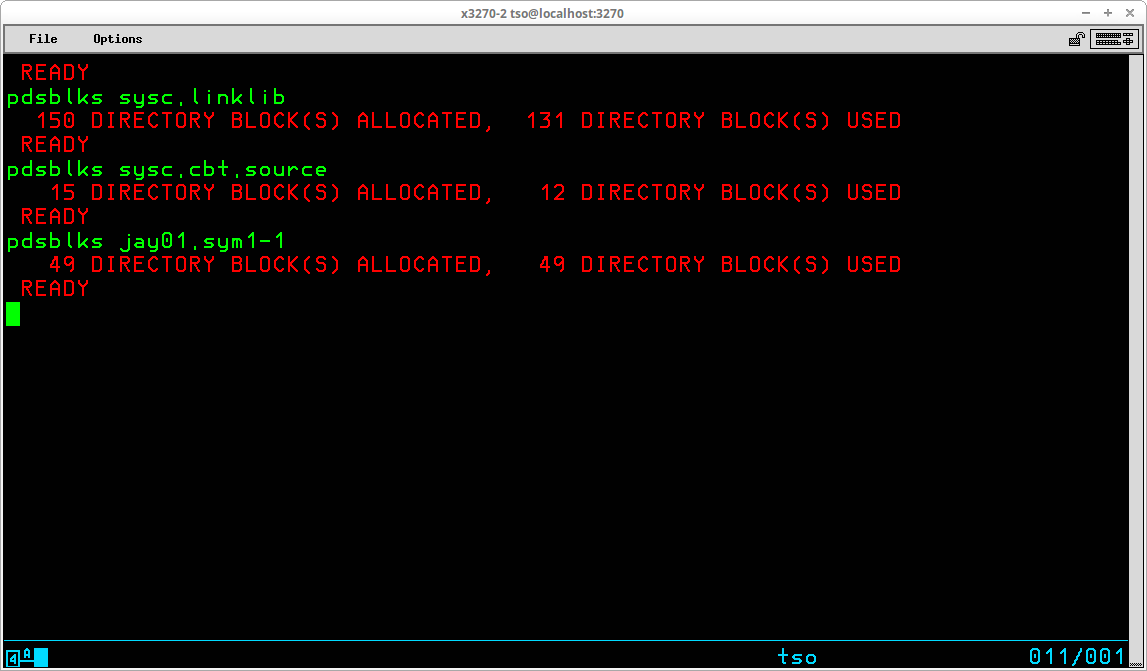

PDSBLKS - Source: GODDARD TAPE FILES #9/#12

The PDSBLKS command lists the number of directory blocks allocated and used for a Partitioned dataset.

Syntax:

          PDSBLKS  'DATA SET NAME'

  REQUIRED - DATA SET NAME

OPERANDS -

	  DATA SET NAME - NAME OF THE PDS FOR WHICH THE NUMBER OF DIRECTORY BLOCKS
		          IS TO BE LISTED.

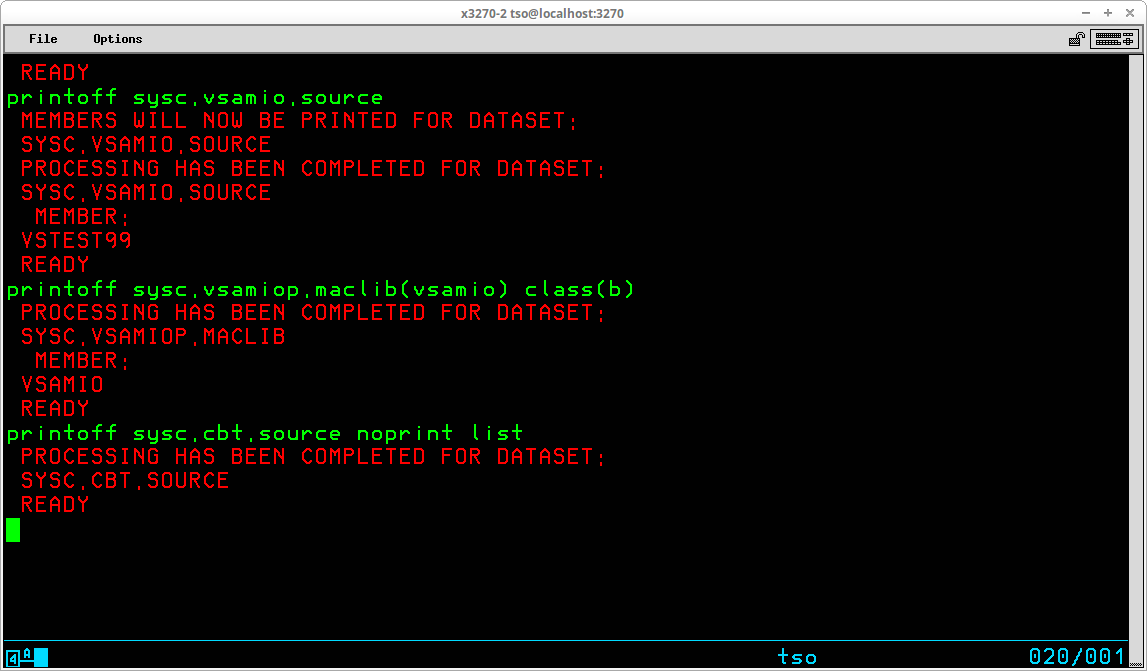

PRINTOFF - Source: CBT V430 File #325

The PRINTOFF command creates a printed copy of datasets through foreground copying to SYSOUT.  The command prints datasets which are sequential or partitioned, block or unblocked, with fixed, variable, or undefined length records of any length up to 32,760.

Syntax:

   PRINTOFF (dslist)/*  DDNAME(ddname)/FILE(ddname)
            UNIT(unit-type)  VOLUME(volser)     NOMESSAGES/NOMSGS
            CLASS(class)     DEST(destination)  COPIES(nnn)
            HOLD/NOHOLD      LIST/NOLIST        PRINT/NOPRINT
            FORMS(form)      FCB(fcb)           TRAIN(image)/UCS(image)
            HEADING/NOHEADING                   CAPS/ASIS/FOLD/NOFOLD
            NOCC/SINGLESPACE/SS/DOUBLESPACE/DS  ASA
            LINELENGTH(nnn)/LL(nnn)             PAGELENGTH(nnn)/PL(nnn)
            BURST/NOBURST    FLASH(flash-name)  CHARS(charset-name(s))
            PROG(progname)   UDKFONT(font-name)

   Required -- dslist or * if DDNAME(...)

   Aliases  -- PRINTO, PO

   Defaults -- CLASS(A), COPIES(1), NOHOLD, LIST, PRINT, FORM($TST),
               HEADING, ASIS, LINELENGTH(132), PAGELENGTH(60), NOBURST,
	       SINGLESPACE if PAGELENGTH(...) or if input RECFM not A/M

Operands -

	DSLIST - Data set list contains the names of data sets to be printed
                 or punched.  The names should follow TSO convention, in
                 quotes if the primary index differs from your profile
                 prefix, or without quotes and with the primary index
                 omitted if it is the same as your profile prefix.
                 Enclosing parenthesis are required if there is more than
                 one name in the list.
                 If DDNAME(...) is specified, the dslist must end with an
                 asterisk (or contain only an asterisk) as a place holder.

	ASA     - Output is to be printed using input data column 1 as ASA
        	  carriage control characters even though the DCB record
	          format does not specify RECFM=..A

	ASIS    - Output is not to be converted to upper case prior to
           	  printing. (It is left as it is.) NOFOLD is an alias for ASIS.

	BURST   - Output is to be trimmed and burst. ===> VALID FOR 3800 ONLY

	NOBURST - Output will be printed on continuous forms.

	CAPS    - Output is to be converted to upper case prior to
	          printing. FOLD is an alias for CAPS.

	CHARS(charset-name(s)) - Character set(s) to be used to print the
                                 output. (1-4 names, each name 1-4 characters.)  If more
                                 than one character set name is given, the input data should
                                 have the character set id specified in the second character
                                 of each line. OPTCD=J is assumed. See the JCL reference
                                 manual for more information. ===> VALID FOR 3800 ONLY

	CLASS(class) - SYSOUT class in which output is to be printed. Default is A.

	COPIES(nnn) - Number of copies to be printed.  Default is 1.

	DEST(destination) - The destination to where SYSOUT is to be routed.
                            Destination can be a JES remote line, a JES local or remote
                            printer, or a network node and userid. Local and remote
                            names are 1-8 characters. Network names are 3-17 characters
                            (node.userid) with the period required as a separator.
                            DEST(node.userid) is mutually exclusive with
                            PROG(progname).

	DDNAME(ddname) - DD name of a previously allocated dataset. If DDNAME
                         is specified, the last (or only) dataset name in dslist
                         must be an asterisk. The DD will not be freed after being
                         printed. FILE is an alias for DDNAME.

	FCB(fcb) - Forms Control Buffer to be used when the data set is
                   printed.  (1-4 character FCB name)

	FLASH(flashname) - The name of the forms flash overlay which is to be
                           flashed on all output. ===> VALID FOR 3800 ONLY

	FORMS(form) - Form to be used when the data set is printed.
                      Default is $TST. (1-4 character form name)
	HEADING - Output is to have a heading containing the data set name.

	NOHEADING - Output is not to have heading information.
	HOLD    - Output is to be placed on a hold queue upon deallocation.
	NOHOLD  - Output is not to be placed on a hold queue upon
                  deallocation.

	LINELENGTH(nnn) - Number of characters on each line of printed
                          output. (1-208 characters with a default of 132.)  Input
                          lines longer than specified linelength will be printed on
                          multiple lines.  LL(...) is an alias for LINELENGTH(...).

	LIST    - A separate listing of member names processed is to be
                  created and printed with the data set output.

	NOLIST  - No list of member names is to be created.

	NOMESSAGES - Non-error messages are not to be written to the TSO
                     terminal. NOMSGS is an alias of NOMESSAGES. The default is
                     to write informational messages to the terminal before and
                     after printing.

	PAGELENGTH(nnn) - Number of lines per page.  (1-120 lines with a
                          default of 60.)  Carriage control in input records is
                          ignored (even if ASA is specified) and SINGLESPACE is used.
                          PL(...) is an alias for PAGELENGTH(...).

	PRINT   - Members are to be printed. (Whether they are also listed
                  is controlled by LIST/NOLIST.)

	NOPRINT - Members are not to be printed. (Whether they are to be
                  listed is controlled by LIST/NOLIST.)

	PROG(progname) - The name of the special 'external writer' program
                         that is to process the output. PROG(progname) is mutually
                         exclusive with DEST(node.userid).

	TRAIN(image) - Print image to be used when the data set is printed.
                       UCS is an alias for TRAIN. (1-4 character print image name)

	UCS(image) - Print image to be used when the data set is printed.
                     UCS is an alias for TRAIN. (1-4 character print image name)

	SINGLESPACE - Output is to be single spaced.  Carriage control in
                      input data is ignored even if ASA is specified.
                      NOCC and SS are aliases for SINGLESPACE.

	DOUBLESPACE - Output is to be double spaced between lines.  Carriage
                      control in input data is ignored even if ASA is specified.
                      DS is an alias for DOUBLESPACE.  (Multiple line records
                      will not be split between pages.)

	UNIT(unit-type) - Unit type of the specified VOLUME(volser). UNIT is
                          ignored if VOLUME is not also specified. UNIT is required
                          only when the dataset is not cataloged, or when the dataset
                          is cataloged to a different volume than the specified
                          VOLUME and the volume cannot be accessed through your TSO
                          default unit type.

	VOLUME(volser) - Volume serial of volume on which data sets to be
                         printed are found.  This volume serial will be used for all
                         data sets specified in the data set list.

	UDKFONT(font-name) - Output is intended to be printed on a XEROX 2700
                             or 3700.  PRINTOFF will insert Xerox User Defined Key (UDK)
                             statements in the output to select the specified font.  No
                             validation is performed on the font name before it is sent
                             to the printer, so the full font name must be specified in
                             upper/lower case exactly as expected by the XEROX printer.
                             (PRINTOFF uses the left brace character, {, hex C0, as the
                             UDK.  Input data containing this character will be
                             interpreted by the printer as a Xerox command, and may
                             produce undesired results.)

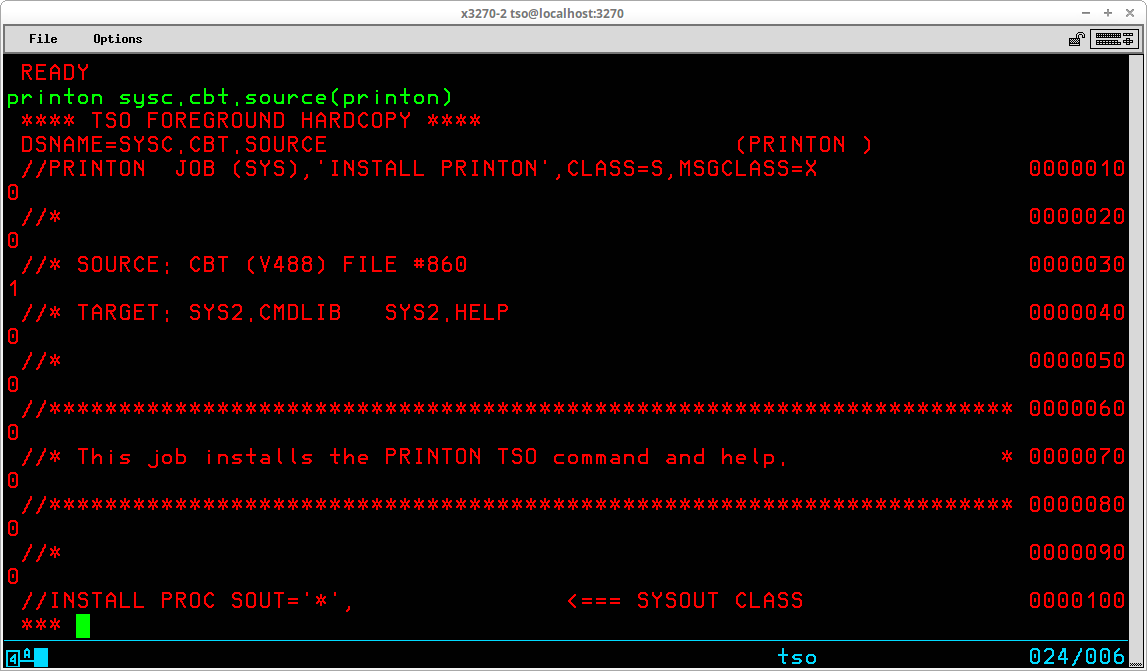

PRINTON - Source: CBT V498 File #860

The PRINTON command prints the contents of one or more datasets to the TSO terminal.

Syntax:

   PRINTON (Dataset list) LIST/NOLIST PRINT/NOPRINT

        Required - (Dataset list)

        DEFAULTS - LIST PRINT

Operands -

	Dataset list - one or more datasets to print.

	LIST         - list members of partitioned dataset.

	NOLIST       - do not list members of partitioned dataset.

	PRINT        - print contents of dataset/PDS members.

	NOPRINT      - do not print contents of dataset/PDS members.




RLSE - Source: CBT V249 File #300

The RLSE command is used to free up unused space from an existing dataset.

Syntax:

         RLSE  'DATASET-NAME'  LEAVE('TRACKS')  EXTENTS

  REQUIRED - 'DATASET-NAME'

  DEFAULTS - ALL UNUSED TRACKS ARE RELEASED IF NEITHER
             'LEAVE' NOR 'EXTENTS' IS SPECIFIED.

OPERAND -
	  'DATASET-NAME' - SPECIFIES THE NAME OF THE DATASET WHICH IS TO HAVE
                           ITS UNUSED SPACE RELEASED.

	  LEAVE('TRACKS') - 'TRACKS' IS THE NUMBER OF UNUSED TRACKS
                            NOT TO BE FREED.

	  EXTENTS - THIS KEYWORD INDICATES THAT ONLY UNUSED SECONDARY
                    EXTENTS ARE TO BE FREED.  THE PRIMARY EXTENT AND
                    ANY PARTIALLY USED SECONDARY EXTENTS ARE NOT FREED,
                    EVEN IF THEY CONTAIN UNUSED SPACE.
                    THIS KEYWORD AND 'LEAVE' ARE MUTUALLY EXCLUSIVE.




SHOWASM - Source: CBT V499 Overflow File #301

The SHOWASM command displays the current auxiliary storage manager slot status and the current page and swap dataset status.

Syntax: SHOWASM     (no operands)

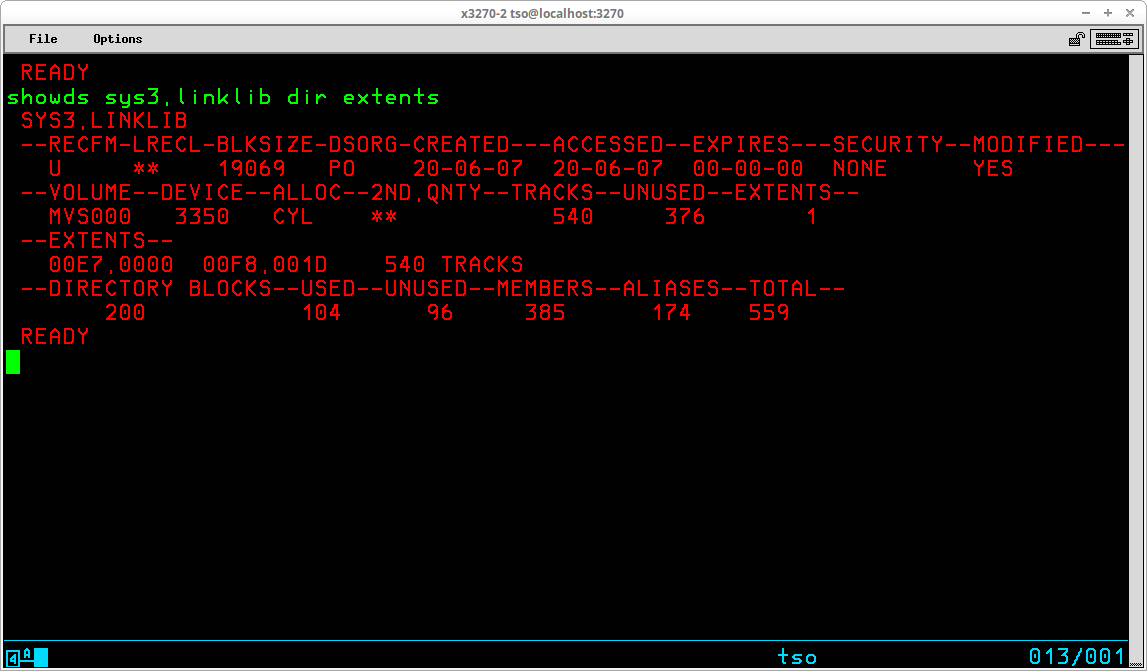

SHOWDS - Source: CBT V249 Overflow File #300

The SHOWDS command displays a datasets attributes and space usage information.

Syntax:

         SHOWDS  'NAME'  VOLUME('VOLUME')   DIR  EXT  FILE

  REQUIRED - 'NAME'

  ALIAS    - SDS

OPERANDS -

	  'NAME'   - THE NAME OF THE DATA SET WHOSE ATTRIBUTES
        	     ARE TO BE DISPLAYED, OR IF THE 'FILE' KEYWORD
	             IS ALSO SPECIFIED, THE 8-CHARACTER FILENAME (DDNAME)
        	     ALLOCATED TO THE DATA SET WHOSE ATTRIBUTES ARE
	             TO BE DISPLAYED.

	VOLUME('VOLUME') - IF THE FIRST OPERAND IS THE NAME OF AN
        	           UNCATALOGED DATA SET, THIS KEYWORD SPECIFIES
	                   THE VOLUME ON WHICH THE DATA SET RESIDES.
	                   THE VOLUME KEYWORD IS IGNORED IF 'FILE' IS
	                   SPECIFIED.

	DIR      - DISPLAY INFORMATION ABOUT THE DIRECTORY OF
	           THE PARTITIONED DATA SET.

	EXTENTS  - DISPLAY THE EXTENTS OF THE DATA SET (THE BEGINNING
	           AND ENDING CYLINDER/TRACK LOCATIONS).

	FILE     - THIS KEYWORD INDICATES THAT THE FIRST OPERAND
        	   IS TO BE TREATED AS A FILENAME (DDNAME) INSTEAD
	           OF A DATA SET NAME.  THE COMMAND WILL DETERMINE
	           WHICH DATA SET IS CURRENTLY ALLOCATED TO THE
	           SPECIFIED FILENAME AND DISPLAY ITS ATTRIBUTES.
	           THIS ALLOWS ATTRIBUTES OF TEMPORARY DATA SETS
	           TO BE DISPLAYED.

ALIAS NAME=SDS




SYSTEM - Source: CBT V249 File #300

The SYSTEM command displays the status of the MVS system.

Syntax:  SYSTEM    (no operands)

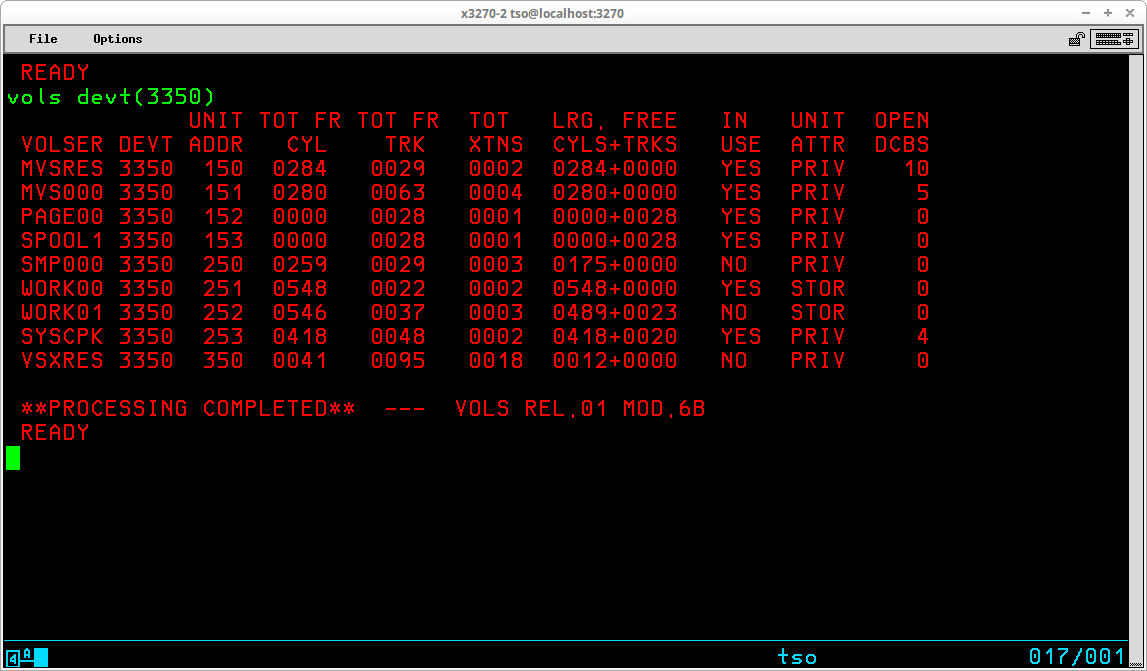

VOLS - Source: CBT V490 File #360

The VOLS command will display the online DASD volumes and how much freespace there is on each volume.

Syntax:

   VOLS Type('voltype')
             DEVIcetype   DEVT('devicetype')
             Attribute('volattr')
        Volume('volser')   Serial('volser')
        Ucbaddr('device-cuu')   Address('device-cuu')
        Clear

        Default  - TYPE(ALL)

  NOTE: Devicetype, Devt, and Attribute are aliases for Type.
        Serial is an alias for Volume.
        Address is an alias for Ucbaddr.

Operands -

	TYPE       - Specifies selection criteria.
               Valid entries for TYPE are:
                     All     - select ALL devices -- DEFAULT
                     PRivate - select PRIVATE devices
                     PUblic  - select PUBLIC devices
                     Storage - select STORAGE devices
                     3390    - select 3390 devices
                     3380    - select 3380 devices
                     3375    - select 3375 devices
                     3350    - select 3350 devices
                     3340    - select 3340 devices
                     3311    - select 3311 devices
                     3330    - select 3330 devices
                     2314    - select 2314 devices

	DEVICETYPE - Specifies selection criteria - alias for TYPE.

	DEVT       - Specifies selection criteria - alias for TYPE.

	ATTRIBUTE  - Specifies selection criteria - alias for TYPE.

	VOLUME     - Specifies selection by volume serial number.
		     The VOLUME parameter may be a specific volser or
                     some level of volser up to 6 characters in length.
                     If a level is specified all devices that have serial
                     numbers beginning with that level will be displayed.

	SERIAL     - Specifies selection criteria - alias for VOLUME.

	UCBADDR    - Specifies selection by the device address.
                     The UCBADDR parameter may be a spedific address or
                     some level of address up to 3 characters in length.
                     if a level is specified all devices that have addresses
                     beginning with that level will be displayed.

	ADDRESS    - Specifies selection criteria - alias for UCBADDR.

	CLEAR      - Clears the screen if executing on a display video and
                     redisplays the headings on the top of all subsequent
                     screens.

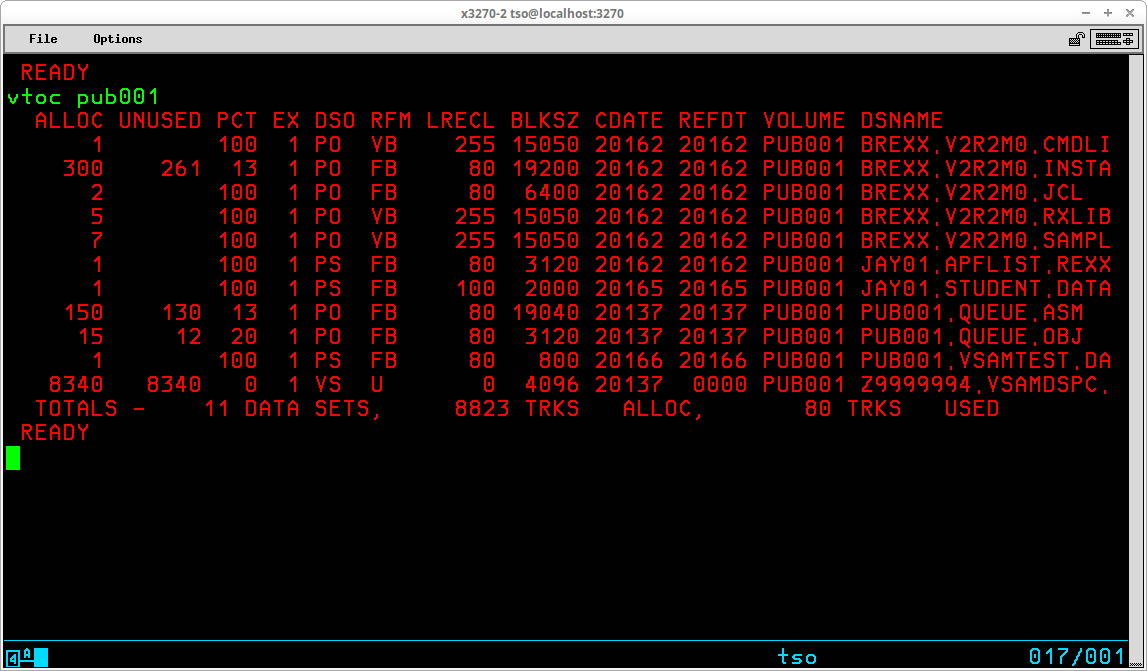

VTOC - Source: CBT V129 File #112

The VTOC command displays selected datasets on a disk or a set of disks.

Syntax:

         VTOC     'VOLUME-LIST'           LEVEL('DSNAME-START')
                                          CONTAINING('DSNAME-STRING')
                                          ENDING('DSNAME-END')
                                          BREAK('BREAK-CHARS')
                                          CAT
                                          NOSORT/SORT('SORT-FIELDS')
                                          NOPRINT/PRINT('PRINT-OP' ('PRINT-ITEM-LIST'))
                                          LIMIT('KEYWORD' 'OPER' 'VALUE')
                                          AND1/OR1('KEYWORD' 'OPER' 'VALUE')
                                          AND2/OR2('KEYWORD' 'OPER' 'VALUE')
                                          AND3/OR3('KEYWORD' 'OPER' 'VALUE')
                                          CHARS('CHARS-PER-LINE')
                                          CONTAINING('DSNAME-STRING')
                                          ENDING('DSNAME-END')
                                          BREAK('BREAK-CHARS')
                                          LINES('LINES-PER-PAGE')
                                          NOHEADING/HEADING('TEXT')
                                          DSNLEN('LENGTH')

  REQUIRED - 'VOLUME-LIST'

  DEFAULTS - LIST ALL DATA SETS ON THE VOLUME(S) SELECTED.
             SORT, PRINT

OPERANDS -
	'VOLUME-LIST'     - A VOLUME SERIAL NUMBER OR A LIST OF VOLUMES.
                            IF THE FIRST ONE TO FIVE CHARACTERS OF A VOLUME
                            SERIAL NUMBER ARE ENTERED, ALL VOLUMES THAT ARE
                            MOUNTED ON THE MACHINE WHICH START WITH THOSE
                            CHARACTERS WILL BE LISTED.
                            IF 'ALL' IS SPECIFIED, ALL NON-VIRTUAL VOLUMES
                            WHICH ARE ONLINE AND READY WILL BE PROCESSED.
                            IF 'ALV' IS SPECIFIED, ALL VIRTUAL VOLUMES
                            WHICH ARE ONLINE AND READY WILL BE PROCESSED,
                            IF THEY ARE MOUNTED PRIVATE/RESERVED OR
                            PRIVATE/RESIDENT.

	LEVEL('DSNAME-START')  - SPECIFIES THE HIGH LEVEL QUALIFIERS TO BE
                                 SEARCHED.  THIS WILL NOT BE PREFIXED BY YOUR USERID OR
                                 PREFIX.  ONLY DATA SETS STARTING WITH THESE PREFIXES WILL
                                 BE LISTED.

	CONTAINING('DSNAME-STRING') - SPECIFIES A CHARACTER STRING CONTAINED
                                      IN THE DATA SET NAME.  AT LEAST ONE OF THE STRINGS MUST
                                      BE IN THE DSNAME FOR THE DATA SET TO BE LISTED.
                                      THESE STRINGS MUST CONFORM TO DSNAME STANDARDS.
                                      THEY CANNOT BEGIN WITH A PERIOD OR A NUMBER.

	ENDING('DSNAME-END')  - SPECIFIES THE ENDING CHARACTERS OF THE
                                DSNAME.  THE FINAL NONBLANK CHARACTERS OF THE DSNAME MUST
                                BE ONE OF THESE STRINGS TO ALLOW THE DATA SET TO BE LISTED.
                                THESE STRINGS MUST CONFORM TO DSNAME STANDARDS.

	CAT      -  A LOCATE IS DONE FOR EACH DSNAME ON THE VOLUMES LISTED
                    AND STATUS IS INDICATED.  NOTE -  THIS OPTION USES A
                    CONSIDERABLE AMOUNT OF PROCESSING TIME.
                      C -  CATALOGGED ON THIS VOLUME
                      N -  NOT CATALOGGED
                      W -  CATALOGGED ON ANOTHER VOLUME
                      E -  CATALOG PROCESSING ERROR

	NOSORT   -  THE DATA SETS ARE NOT SORTED.  THEY ARE OUTPUT AS THEY
                    ARE FOUND.

	SORT('SORT-FIELDS') DATA SETS ARE SORTED INTO ALPHABETICAL ORDER,
                            BASED UPON THE SORT FIELDS SPECIFIED.
                            DSNAME,VOLUME,ALLOC,USED,UNUSED,PCT,EX,DSO,RFM,
                            LRECL,BLKSZ,CDATE,EXPDT,REFDT ARE VALID SORT FIELDS.
                            'A/D'   ARE REQUIRED AFTER EACH SORT FIELD TO INDICATE
                            ASCENDING/DESCENDING SEQUENCE.

	BREAK('BREAK-CHARS') - THE LISTING WILL CONTAIN A NEW HEADER,
                               ( ON A NEW PAGE IF THE VTOCOUT DD CARD OPTION IS USED ),
                               WHENEVER THE SPECIFIED NUMBER OF CHARACTERS DIFFERS
                               FROM THE PRECEDING DATA SET.  THIS OPTION FUNCTIONS
                               ONLY WITH THE SORT OPTION.

	CHARS('CHARS-PER-LINE') - SPECIFIES THE NUMBER OF CHARACTERS ON EACH
                                  LINE OF OUTPUT.  THE DEFAULT IS 150 FOR PRINT AND THE
                                  LINESIZE OF THE TERMINAL FOR TSO SESSIONS.
                                  YOU CAN GET MORE INFORMATION BY SPECIFYING A LARGER
                                  NUMBER OF CHARACTERS PER LINE OR YOU CAN LIMIT THE
                                  PRINTING BY SETTING A SMALLER NUMBER OF CHARACTERS
                                  PER LINE OF OUTPUT.

	LINES('LINES-PER-PAGE') - SPECIFIES THE NUMBER OF LINES BEFORE A NEW
                                  TITLE LINE IS PRODUCED.  IT DEFAULTS TO 60 FOR PRINT
                                  AND TO THE SCREEN SIZE FOR TSO SESSIONS.

	NOHEADING   - DO NOT PRODUCE A HEADING.  THE HEADING WILL ONLY BE
                      OUTPUT IF THE VTOCOUT DD STATEMENT IS PRESENT.

	HEADING('TEXT') - IF A DD STATEMENT WITH A DDNAME OF VTOCOUT IS
                          PRESENT, THIS TEXT WILL BE USED TO BEGIN EVERY PAGE.
                          CARRIAGE CONTROL SHOULD BE INCLUDED ( ASA ).  THE
                          DEFAULT HEADER CONSISTS OF VTOC COMMAND VERSION 02
                          AND THE COMMAND THAT WAS ENTERED.

	DSNLEN('LENGTH') - SPECIFIES THE LENGTH OF THE DSNAME TO PRINT.
                           THE REST OF THE DSNAME IS TRUNCATED.  THE CHARS PARAMETER
                           WILL ALSO CAUSE THE DSNAME TO BE TRUNCATED, IF THE NAME
                           AND THE PRECEDING INFORMATION EXCEEDS THE PRINT LINE.

	NOPRINT     - SPECIFIES THAT INDIVIDUAL ITEMS ARE NOT TO BE LISTED.
                      THE COMMAND CAN BE USED TO CALCULATE TOTALS.

	PRINT('PRINT-OP' ('PRINT-ITEM-LIST')) - SPECIFIES THE ITEMS TO PRINT.  THE 'PRINT-OP' IS THE
                                                OPERATION TO BE DONE.  THEY INCLUDE THE FOLLOWING.
                                                NEW - THE 'PRINT-ITEM-LIST' IS A COMPLETE LIST OF WHAT
                                                      TO PRINT.
                                                REP - THE FIRST 'PRINT-ITEM' WILL BE REPLACED WITH THE
				                      REST OF THE ITEMS ON THE LIST.
				                ADD - THE REST OF THE 'PRINT-ITEM-LIST' WILL BE ADDED
				                      AFTER THE FIRST ITEM ON THE LIST.
				                DEL - THE ITEMS ON THE 'PRINT-ITEM-LIST' WILL NOT BE
				                      PRINTED.
				                THE 'PRINT-ITEM-LIST' NAMES ARE THE SAME KEYWORDS USED
				                IN LIM, AND, AND OR FUNCTIONS AND ARE ALSO THE TITLES
				                AS PRINTED.
				                THE ADD, DEL, AND REP PRINT OPERATIONS REFER TO THE
						DEFAULT PRINT LIST.  THE DEFAULT LIST IS ALLOC, UNUSED,
					        PCT, EX, DSO, RFM, BLKSZ, LRECL, REFDT, CDATE, VOLUME,
				                DSNAME, EXPDT, SECQ, SECT, ROUND, PASS, ACTION,
				                AND TYPE.  AS NOTED UNDER CHARS ABOVE, ONLY THE ITEMS
				                THAT WILL FIT ON THE PRINT LINE WILL BE LISTED.

	LIMIT('VALUE' 'OPER' 'KEYWORD') - SPECIFIES WHICH DATA SETS ARE TO
        			          BE LISTED.  ONLY DATA SETS THAT SATISFY THE RELATION
				          ARE LISTED.

	'KEYWORD'   - IS THE NAME OF A DATA SET FIELD.  THE LIST OF CURRENTLY
                      PROVIDED FIELDS FOLLOWS.  THE KEYWORDS AND THEIR VALUES
                      ARE THE SAME AS IN THE VTOC OUTPUT.

                      ALLOC      DATA SET ALLOCATION
                                    NUMBER OF KILOBYTES, TRACKS,
                                    CYLINDERS, OR MEGABYTES ALLOCATED.
                                    DEFAULT IS KILOBYTES.
                      UNUSED     AMOUNT OF UNUSED SPACE IN THE DATA
                                    SET.  SAME UNITS AS IN ALLOC.
                      USED       AMOUNT OF SPACE USED IN THE DATA SET.
                                    SAME UNITS AS IN ALLOC.
	              PCT        PERCENTAGE OF SPACE USED IN THE DATA
                                    USED.
                      EX         NUMBER OF EXTENTS IN THE DATA SET.
                      DSO        DATA SET ORGANIZATION
                                    PS = SEQUENTIAL   PO = PARTITIONED
                                    VS = VSAM         IS = ISAM
                                    DA = DIRECT ACCESS  U = UNMOVEABLE
                      RFM        RECORD FORMAT
                                    F  = FIXED        V  = VARIABLE
                                    U  = UNDEFINED    B  = BLOCKED
                                    T  = TRACK OVERFLOW
                                    S  = SPANNED OR STANDARD
                                    A  = ASA CARRIAGE CONTROL
                                    M  = MACHINE CARRIAGE CONTROL
                      BLKSZ      BLOCKSIZE FOR PHYSICAL BLOCKS OF
                                    DATA.
                      LRECL      LOGICAL RECORD LENGTH IN BYTES.
                      CDATE      CREATION DATE IN THE FORM YYDDD,
                                    SOMETIMES CALLED JULIAN.
                      EXPDT      EXPIRATION DATE IN THE SAME FORM.
				 THIS FIELD IS RARELY USED HERE.
                      REFDT      LAST USE DATE IN THE SAME FORM.
                                    THIS DATE IS WHEN THE DATA SET WAS
                                    LAST OPENED.
                      SECT       TYPE OF ALLOCATION
                                    A  = ABSOLUTE TRACK
                                    B  = BLOCKS
                                    T  = TRACKS
                                    C  = CYLINDERS
                      PASS       PROTECTION INDICATORS
                                    N  = NONE
                                    R  = READ AND WRITE PROTECTION
                                    W  = WRITE PROTECTION
                      ROUND      SPACE ROUNDED UP TO CYLINDERS
                                    R  = ROUND
                                    N  = NO ROUND
                      CCHH       CYLINDER AND HEAD ADDRESS, IN 4 OR 8
                                    HEXADECIMAL DIGITS.  IF 4 DIGITS
                                    ARE USED, ONLY THE CYLINDER IS USED
                                    FOR COMPARISON, OTHERWISE, THE CYL
				    AND TRACK ARE COMPARED.
                      VOLUME     VOLUME SERIAL NUMBER OR DISK NAME
                      DSNAME     NAME OF THE DATA SET
                      ACTION     SOME ERROR INDICATIONS
                      TYPE       RESERVED FOR EXIT USAGE.

	'OPER'      - IS AN OPERATOR.  THE LIST OF OPERATORS FOLLOWS.
                        EQ       IS EQUAL TO
                        NE       IS NOT EQUAL TO
                        LE       IS LESS THAN OR EQUAL TO
                        LT       IS LESS THAN
                        GE       IS GREATER THAN OR EQUAL TO
                        GT       IS GREATER THAN

	'VALUE'     - GIVES THE VALUE OF THE ITEM FOR COMPARISON, SUCH AS
                      FB, PS, R, OR A NUMBER.

	AND1('VALUE' 'OPER' 'KEYWORD') -  SPECIFIES WHICH DATA SETS ARE TO
                                          BE LISTED.  BOTH THE LIMIT AND THIS CONDITION MUST
                                          BE TRUE TO ALLOW THE LISTING.

	OR1('VALUE' 'OPER' 'KEYWORD') -   SPECIFIES WHICH DATA SETS ARE TO
                                          BE LISTED.  EITHER THE LIMIT OR THIS CONDITION MUST
                                          BE TRUE TO ALLOW THE LISTING.

	AND2('VALUE' 'OPER' 'KEYWORD') -  SPECIFIES WHICH DATA SETS ARE TO
                                          BE LISTED.  BOTH THE PREVIOUS RESULT AND THIS
                                          CONDITION MUST BE TRUE TO ALLOW THE LISTING.

	OR2('VALUE' 'OPER' 'KEYWORD') -   SPECIFIES WHICH DATA SETS ARE TO
                                          BE LISTED.  EITHER THE PREVIOUS RESULT OR THIS
                                          CONDITION MUST BE TRUE TO ALLOW THE LISTING.

	AND3('VALUE' 'OPER' 'KEYWORD') -  SPECIFIES WHICH DATA SETS ARE TO
                                          BE LISTED.  BOTH THE PREVIOS RESULT AND THIS
                                          CONDITION MUST BE TRUE TO ALLOW THE LISTING.

	OR3('VALUE' 'OPER' 'KEYWORD') -   SPECIFIES WHICH DATA SETS ARE TO
                                          BE LISTED.  EITHER THE PREVIOUS RESULT OR THIS
                                          CONDITION MUST BE TRUE TO ALLOW THE LISTING.
	EXAMPLES -
	  LIST ALL DATA SETS ON VOL             VTOC VOL
	  LIST ALL DATA SETS ON ALL VOLUMES     VTOC ALL
	  LIST ALL DATA SETS THAT START
               WITH  XXX
               ON ANY MVXXXX VOLUME             VTOC MV LEV(XXX)
	  LIST ALL RECENTLY CREATED DATA SETS   VTOC VOL LIM(CDATE GT 79001)
	  LIST DATA SETS WITH UNUSED SPACE      VTOC VOL LIM(PCT LT 50)  -
                                                 OR1(UNUSED GT 30)
	  LIST DATA SETS WITH MULTIPLE EXTENTS  VTOC VOL LIM(EX GT 1)
	  LIST ALL OF USER'S DATA ON TSO001     VTOC TSO001 LEVEL(TMTCEXX)
	  LIST ALL DATA SETS OVER 100 TRKS      VTOC VOL LIM(ALLOC GT 100)
	  LIST DATA SETS UNDER THE FIXED HEADS  VTOC VOL LIM(CC EQ 0001) -
                                                 OR1(CC EQ 0002)
	  LIST USED SPACE INSTEAD OF UNUSED,
               IN TRACKS.                       VTOC VOL PRINT(REP (UNUSED USED)) TRK
	  LIST CLIST DATA SETS                  VTOC VOL END(CLIST)
	  LIST ALL OF THE INFORMATION ABOUT
               USER'S DATA SETS AT A 3270.      VTOC VOL CHAR(150)
	  CHECK IF DATASETS ARE CATALOGED
               ON THIS VOLUME.                  VTOC VOL CAT PRINT(NEW (ALLOC PCT CAT DSNAME))
	  LIST ALL DATA SETS ON 335XXX VOLUMES
               SORTED BY ALLOC IN DESCENDING
               SEQUENCE, VOLUME AND DSNAME IN
               ASCENDING SEQUENCE.              VTOC 335 SORT(ALLOC,D,VOLUME,A,DSNAME,A)

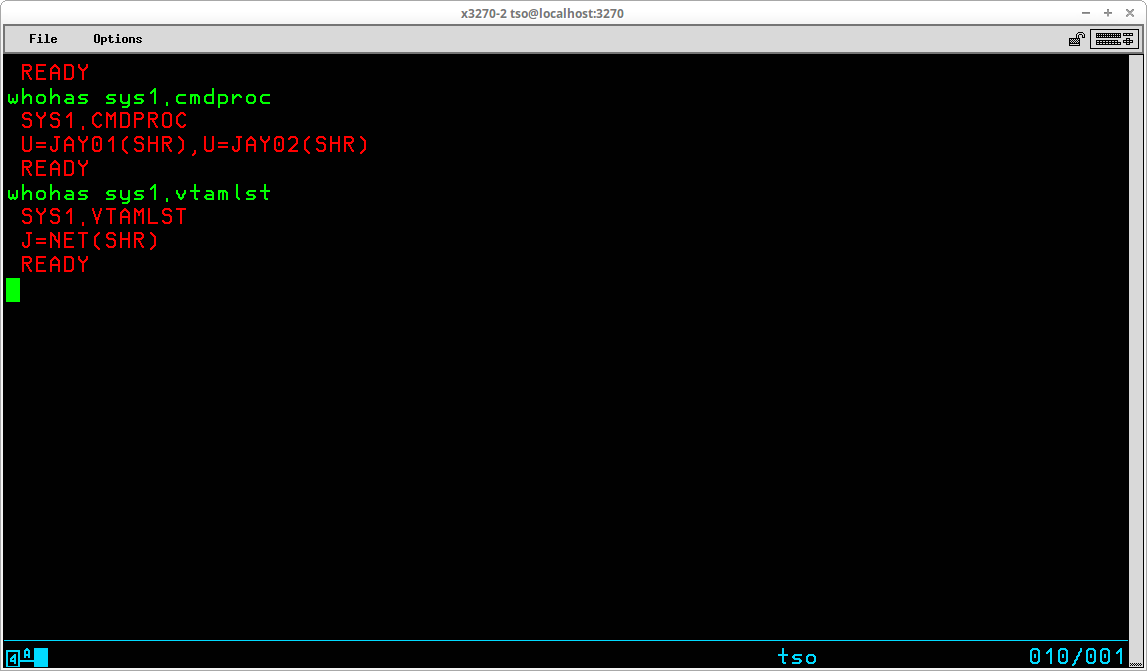

WHOHAS - Source: CBT V249 File #300

The WHOHAS command lists all users and/jor jobs that have enqueued on the specified dataset name(s).

Syntax:

         WHOHAS  'DATA SET NAME LIST'  OLD

  DEFAULTS - 'SHR' AND 'OLD' ENQUED DATA SETS.

  ALIAS    - DSN

  **NOTE** - IF THE DATA SET NAME IS NOT SPECIFIED, ONLY THE USER ID
             IS USED.
OPERANDS -
  'DATA SET NAME LIST' - SPECIFIES THE DATA SET NAME(S) ON WHICH USERS AND/OR
                         JOBS HAVE ENQUED.

  OLD       - SPECIFIES THAT ONLY DATA SETS ALLOCATED AS 'OLD' ARE TO BE LISTED.


I hope that you have found my instructions useful.  If you have questions that I can answer to help expand upon the information I have included here, please don't hesitate to send them to me:


Return to Site Home Page

This page was last updated on June 15, 2020.
