Compiler/Language/Tools Volume

Version 1.05 (2013/05/08)


The rationale for creating a single DASD volume with all of the language compilers and related tools includes several factors:

In order to be compatible with the largest number of Hercules/MVS users and also provide the maximum usable space, the type of DASD volume chosen was a 3350.  The volume serial number is SYSCPK - SYStem Compiler PacK.  The volume contains its own VSAM User Catalog:  UCSYSCPK and is installed with an ALIAS in the VSAM Master Catalog of SYSC.  All Non-VSAM datasets on the volume begin with the high level qualifier SYSC, so that they are automatically accessed via the ALIAS/User Catalog relationship.  The volume also contains a Procedure Library, in which all the procedures to access the compilers/tools are cataloged.

As I created the volume and populated it with the compilers, I attempted to include as much documentation as I could on the volume itself.  You will find an index dataset - SYSC.$INDEX - that contains a one line description of all the other datasets on the volume.  I have also included $INDEX members in those datasets where it was permissible to do so, and included one line descriptions of the contents of the individual members of the datasets.

The dataset SYSC.SETUP.CNTL contains two jobstreams which will assist in the incorporation of the volume into your existing MVS system.  It also contains the jobstreams I used to initially set up the volume - initializing the volume, building the User Catalog/ALIAS, and allocating the Partitioned Datasets for the Procedure Library and Load Library.

All other datasets on the volume were created during the process of installing the compilers/tools listed on the prior page of this site.  There were some modifications made to the target library names in order to fit the target environment, but the same basic installation jobs were used.  A major difference is that, whenever possible, I installed from source code instead of reloading object libraries and I have left the source code intact in datasets on the SYSCPK volume.


Installation / Integration

The tasks necessary to install the volume into an existing Hercules/MVS system are:

  1. Download the archive containing the volume and unpack it in the directory where your other DASD volume images reside;

  2. With Hercules/MVS running, attach the volume to Hercules and vary it online to MVS;

  3. Run the job to Import/Connect the User Catalog;

  4. Run the job to modify the JES2 procedure and the SYS1.PARMLIB members;

  5. Shutdown MVS/Hercules;

  6. Add the volume to your Hercules' configuration file;

  7. Restart Hercules/MVS.


1. Download the archive and unpack the volume.

SYSCPK.tar.gz [12.5 mb MD5: 760aaa29c92878c4ec9509b4f4d1a829] contains a single file, the 3350 DASD volume image.  Unpack it and place it in the same directory with your other DASD volume images.  As provided, the volume is not compressed, but you can compress it using the dasdcopy utility included with Hercules by using the command:

dasdcopy -z -a syscpk.3350 ofile

where ofile is the name of the file to contain the compressed DASD image.  You will probably wish to rename the image file in order to be consistent with the naming scheme for DASD volumes in your environment, so it would be appropriate to rename the volume image at the same time you are compressing it.  If you do not utilize compressed DASD on your system, you may simply rename the volume image after it has been unpacked so that the name is consistent with your other volumes.

A Volume Table of Contents listing of the SYSCPK volume may be seen at:  SYSCPK Volume Table of Contents Listing.

2. Attach the volume and place it online to MVS.

Because MVS will default to PUBLIC class for volumes auto-mounted at IPL, it is preferable to start Hercules and MVS without adding a reference to the SYSCPK volume to your Hercules' configuration file at this time.

Let me restate that this is a 3350 DASD image, so you will need to determine an appropriate address in your MVS system to which the volume may be mounted.

Use the Hercules' attach command to open the volume image to Hercules:

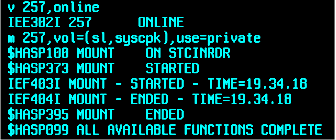

Use the Vary and Mount commands on the MVS console to place the volume online:


3. Run the job to Import/Connect the User Catalog.

As mentioned above, there are jobstreams included in the dataset SYSC.SETUP.CNTL on the volume that will integrate the volume into your existing MVS system.  The first of these to be run is in the member IMPORT.  This jobstream uses IDCAMS to connect the User Catalog on the SYSCPK volume to the VSAM Master Catalog and then defines an ALIAS so that the high level qualifier SYSC is related to the User Catalog.  The contents of that jobstream are:

// MSGLEVEL=(1,1)
//* ----------------------------------------------------------------- *
//* *
//* On the DASD volume SYSCPK there is a User Catalog defined. All *
//* of the datasets contained on that volume are catalogued in that *
//* User Catalog. This job IMPORTS that User Catalog into the MVS *
//* Master Catalog, thereby making the User Catalog and its contents *
//* visable to MVS. An Alias is then defined in the Master Catalog *
//* that will direct all searches for datasets beginning with the *
//* High Level Qualifier "SYSC" to be directed to the User Catalog on *
//* the SYSCPK volume. Any new datasets created with a High Level *
//* Qualifier of "SYSC" will be cataloged in that User Catalog. *
//* *
//* ----------------------------------------------------------------- *

DEVICETYPE (3350) -



Submit the job; the single step should receive a return code of 0000.  If your Master Catalog is password protected, you will be prompted on the MVS Operator's console for the password twice during the execution of this job - once when the User Catalog is imported and again when the Alias is created.


4. Run the job to modify the JES2 procedure and the SYS1.PARMLIB members.

The catalogued procedure used to start JES2, which is contained in SYS1.PROCLIB,  must be modified in order to search the Procedure Library on the SYSCPK volume.  Also, two members of SYS1.PARMLIB must be updated - IEAAPF??, which controls from which load libraries authorized programs may be executed, and VATLST??, which determines the Class under which DASD volumes are automatically mounted during IPL.  I have written a program and a jobstream to execute the program which reads the existing contents of the members to be changed and generates a second jobstream to apply the changes.  The generated jobstream may be edited before it is submitted, or submitted directly to the internal reader.  The source of the program is contained in SYSC.SETUP.CNTL(ISYSCPK); it has been compiled and the load module is contained in SYSC.LINKLIB, ready to execute.  The jobstream to execute is contained in SYSC.SETUP.CNTL(ISYSCPKJ):

// EXEC PGM=ISYSCPK,REGION=1024K
//STEPLIB  DD DSN=SYSC.LINKLIB,DISP=SHR
//SYSOUT   DD SYSOUT=*
//SYSUT1   DD DUMMY                  <- DYNAMICALLY ALLOCATED

You may submit it as it exists to produce a listing of the jobstream that will be generated.  The SYSOUT DD will contain a progress log:

FOUND APF= IN IEASYS00:  APF=00,                      Suffix for authorized lib list IEAAPFxx
FOUND VAL= IN IEASYS00:  VAL=00,                      Volume Attribute List VATLSTxx

The actual member names for IEAAPF?? and VATLST?? may vary widely among systems; each name includes a two character suffix that is either specified in the IEASYS00 member of SYS1.PARMLIB or defaults to 00 if not specified.  The generated jobstream will first copy the existing contents of the members to be modified, creating backups:


so they may be restored in case of major problems.  If the JES2 procedure becomes damaged so that JES2 will not start, the previous procedure may be used by substituting JES2OLD for JES2 in the start command:


Here is a version of the generated jobstream executed on one version of MVS:

//SYSIN    DD *










//JES2    PROC M=JES2PARM,                                              00100000
//             N=SYS1,                                                  00200000
//             L=LINKLIB,                                               00300000
//             U=3350,                                                  00400000
//             N1=SYS1,                                                 00500000
//             P0=SYS1,                                                 00600000
//             P1=SYS2,                                                 00700000
//             P2=SYS1,                                                 00800000
//             P=JES2PARM                                               00900000
//IEFPROC EXEC PGM=HASJES20,                                            01000000
//             TIME=1440,                                               01100000
//             DPRTY=(15,15)                                            01200000
//STEPLIB  DD  UNIT=&U,DISP=SHR,DSN=&N..&L                              01300000
//         DD  DSN=&P0..PROCLIB,DISP=SHR                                01500000
//         DD  DSN=&P1..PROCLIB,DISP=SHR                                01600000
//         DD  DSN=&P2..PROCLIB,DISP=SHR                                01700000
//HASPPARM DD  DSN=&N1..&P(&M),DISP=SHR                                 01800000
 SYS1.VTAMLIB MVSRES,                                                   00100000
 SYS1.INDMAC MVSRES,                                                    00200000
 SYSC.LINKLIB SYSCPK                                                    00300000
CBTCAT,1,2,3350    ,N                  CBT Files (#0), contains SYS1.UCA00100000
CBT001,1,2,3350    ,N                  CBT Files (#1)                   00200000
CBT002,1,2,3350    ,N                  CBT Files (#2)                   00300000
CBT003,1,2,3350    ,N                  CBT Files (#3)                   00400000
CBT004,1,2,3350    ,N                  CBT Files (#4)                   00500000
HASP00,1,1,3330    ,N                  MVS 3.8 JES Spool Disk 1         00600000
HASP01,1,1,3330    ,N                  MVS 3.8 JES Spool Disk 2         00700000
LISP80,1,0,3380    ,N                  LISP work pack                   00800000
MVSCAT,1,0,3390    ,N                  MVS Catalog volume               00900000
MVSDLB,1,2,3350    ,N                  MVS DLIB                         01000000
MVSRES,1,2,3350    ,N                  MVS 3.8 SYSRES                   01100000
PAGE00,1,2,3340    ,N                  MVS 3.8 Page Disk 1              01200000
PAGE01,1,2,3340    ,N                  MVS 3.8 Page Disk 2              01300000
PAGE02,1,2,3340    ,N                  MVS 3.8 Page Disk 3              01400000
PUB000,1,0,3350    ,N                  TSO Pack 1, contains SYS1.UCAT.TS01500000
PUB001,1,0,3375    ,N                  TSO Pack 2                       01600000
PUB002,1,0,3380    ,N                  TSO Pack 3                       01700000
PUB003,1,0,3390    ,N                  TSO Pack 4                       01800000
SORT00,0,1,2314    ,N                  Sort Volume 1                    01900000
SORT01,0,1,2314    ,N                  Sort Volume 2                    02000000
SORT02,0,1,2314    ,N                  Sort Volume 3                    02100000
SORT03,0,1,2314    ,N                  Sort Volume 3                    02200000
SORT04,0,1,2314    ,N                  Sort Volume 4                    02300000
SORT05,0,1,2314    ,N                  Sort Volume 5                    02400000
SORT06,0,1,2314    ,N                  Sort Volume 6                    02500000
SPOOL0,1,1,3330    ,N                  Starter Pack JES Spool Disk      02600000
SRCCAT,1,2,3350    ,N                  MVS Source code                  02700000
SRC000,1,2,3350    ,N                  MVS Source code                  02800000
SRC001,1,2,3350    ,N                  MVS Source code                  02900000
SRC002,1,2,3350    ,N                  MVS Source code                  03000000
SRC003,1,2,3350    ,N                  MVS Source code                  03100000
START1,1,2,3330    ,N                  Starter Pack sysres volume       03200000
SYSCPK,1,2,3350    ,N        PRIVATE - SYSTEM LANGUAGE/COMPILER PACK    03300000
WORK00,1,1,3350    ,N                  WORKPACK                         03400000
WORK01,1,1,3375    ,N                  WORKPACK                         03500000
WORK02,1,1,3380    ,N                  WORKPACK                         03600000
WORK03,1,1,3390    ,N                  WORKPACK                         03700000

The statements that were inserted in the modified members are shown in color.

Submit the job; the single step of the job should receive a return code of 0000.

Note:  The JES2 startup procedure will be modified to place the Procedure Library on SYSCPK - SYSC.PROCLIB - as the first library in the concatenation for PROC00.  For personal preference, you may wish to modify the JES2 procedure to place SYSC.PROCLIB in another position in the concatenation.  This is discussed a bit more in the section below - Executing the Compilers/Tools.


5. Shutdown MVS/Hercules.

Shut down MVS and then Hercules.


6. Add the volume to your Hercules' configuration file.

Edit the Hercules' configuration file used when Hercules is executed to run MVS (probably mvs.cnf, or turnkey_mvs.conf located in the conf subdirectory if you are running a version of the Turnkey system).  You do not have to add the volume attached to the same address you used when you manually attached it above (in step 2), but be sure that the address you use has been generated as a 3350 DASD device.

I do not run my system with any DASD volumes set to readonly, but I received feedback that if you set SYSCPK as readonly on the Turnkey system, you cannot access any members of any Partitioned Dataset on SYSCPK.  If you are concerned about accidentally updating the SYSCPK volume image, you can use the fakewrite option, which will accept write operations to the volume image and report them as completed to MVS, but will not actually perform the write to the volume image file.


7. Restart Hercules/MVS.

Restart Hercules and MVS normally.  All of the compilers/tools on the SYSCPK volume are now usable in your system.


Executing the Compilers/Tools

With very few exceptions, all of the load modules in SYSC.LINKLIB are executed using catalogued procedures, which are located in the Procedure Library on SYSCPK - SYSC.PROCLIB.  Each of the procedures contains a STEPLIB DD card so that the system will search SYSC.LINKLIB for the load module rather than using any of the libraries named in the Linklist.  The necessity for a STEPLIB rather than relying on the Linklist is that any library to be included in the Linklist must be catalogued in the Master Catalog, and part of the design was to have a completely contained volume with all of its objects catalogued in its own User Catalog.

Here is the list of procedures contained in SYSC.PROCLIB (from the $INDEX member):

ALGOFC   MVT ALGOL Compile
ALGOFCG  MVT ALGOL Compile & Execute
ALGOFCL  MVT ALGOL Compile & Link-Edit
ALGOFCLG MVT ALGOL Compile, Link-Edit, & Execute
ASM$C    Assembler XF (patched for macro xref) Compile
ASM$CG   Assembler XF (patched for macro xref) Compile & Execute
ASM$CL   Assembler XF (patched for macro xref) Compile & Link-Edit
ASM$CLG  Assembler XF (patched for macro xref) Compile, Link-Edit, & Execute
ASMGC    Assembler G (Waterloo) Compile
ASMGCG   Assembler G (Waterloo) Compile & Execute
ASMGCL   Assembler G (Waterloo) Compile & Link-Edit
ASMGCLG  Assembler G (Waterloo) Compile, Link-Edit, & Execute
ASMXC    Assembler XF (IFOX00) Compile
ASMXCG   Assembler XF (IFOX00) Compile & Execute
ASMXCL   Assembler XF (IFOX00) Compile & Link-Edit
ASMXCLG  Assembler XF (IFOX00) Compile, Link-Edit, & Execute
ASSIST   Execute ASSIST
A68C     ALGOL 68c (Cambridge) Compile & Execute
A68CL    ALGOL 68c (Cambridge) Compile & Link-Edit
A68CLG   ALGOL 68c (Cambridge) Compile, Link-Edit, & Execute
A68LG    ALGOL 68c (Cambridge) Link-Edit & Execute
A68XREF  ALGOL 68c (Cambridge) Print Cross Reference
COBUC    MVT COBOL Compile
COBUCG   MVT COBOL Compile & Execute
COBUCL   MVT COBOL Compile & Link-Edit
COBUCLG  MVT COBOL Compile, Link-Edit, & Execute
COBUL    MVT COBOL Link-Edit & Execute
FORTGC   MVT FORTRAN IV (G) Compile
FORTGCL  MVT FORTRAN IV (G) Compile & Link-Edit
FORTGCLD MVT FORTRAN IV (G) Compile & Execute
FORTGCLG MVT FORTRAN IV (G) Compile, Link-Edit, & Execute
FORTGLG  MVT FORTRAN IV (G) Link-Edit & Execute
FORTHC   MVT FORTRAN IV (H) Compile
FORTHCL  MVT FORTRAN IV (H) Compile & Link-Edit
FORTHCLD MVT FORTRAN IV (H) Compile & Execute
FORTHCLG MVT FORTRAN IV (H) Compile, Link-Edit, & Execute
FORTHLG  MVT FORTRAN IV (H) Link-Edit & Execute
MORT     MORTRAN Translate
MORTGC   MORTRAN Translate & Compile (FORTRAN IV [G])
MORTGCG  MORTRAN Translate, Compile (FORTRAN IV [G]), & Execute
MORTGCL  MORTRAN Translate, Compile (FORTRAN IV [G]), & Link-Edit
MORTGCLG MORTRAN Translate, Compile (FORTRAN IV [G]), Link-Edit, & Execute
MORTHC   MORTRAN Translate & Compile (FORTRAN IV [H])
MORTHCG  MORTRAN Translate, Compile (FORTRAN IV [H]), & Execute
MORTHCL  MORTRAN Translate, Compile (FORTRAN IV [H]), & Link-Edit
MORTHCLG MORTRAN Translate, Compile (FORTRAN IV [H]), Link-Edit, & Execute
PL1DFC   MVT PL/I (F) Compile (object deck output)
PL1LFC   MVT PL/I (F) Compile (load library output)
PL1LFCG  MVT PL/I (F) Compile & Execute
PL1LFCL  MVT PL/I (F) Compile & Link-Edit
PL1LFCLG MVT PL/I (F) Compile, Link-Edit, & Execute
PL1LFG   MVT PL/I (F) Execute (Loader)
PL1LFLG  MVT PL/I (F) Link-Edit & Execute
PL360C   PL360 Compile
PL360CG  PL360 Compile & Execute
PL360CL  PL360 Compile & Link-Edit
PL360CLG PL360 Compile, Link-Edit, & Execute
P8PASC   Pascal 8000 Compile
P8PASCAL Pascal 8000 Compile & Execute
P8PASCL  Pascal 8000 Compile & Link-Edit
P8PASCLG Pascal 8000 Compile, Link-Edit, & Execute
P8PASINC Pascal 8000 include directive for P8PASCL & P8PASCLG
RPGEC    MVT RPG Compile
RPGECL   MVT RPG Compile & Link-Edit
RPGECLG  MVT RPG Compile, Link-Edit, & Execute
RPGELG   MVT RPG Link-Edit & Execute
SBPASCAL S.U.N.Y. Stony Brook Pascal Compile & Execute
SIMC     SIMULA Compile
SIMCG    SIMULA Compile & Execute
SIMCL    SIMULA Compile & Link-Edit
SIMCLG   SIMULA Compile, Link-Edit, & Execute
SNOBOL4  SNOBOL 4 Compile & Execute
SORT     MVT Sort/Merge
SORTD    MVT Sort/Merge
STPASCAL Stanford Pascal Compile & Execute
WATFIV   Waterloo FORTRAN IV Execute
XPLA     Compiler Generator Syntax Analyzer
XPLC     Compiler Generator Compile
XPLCG    Compiler Generator Compile & Execute
XPLG     Compiler Generator Execute

Some of these procedures duplicate similar procedures in SYS1.PROCLIB, and perhaps SYS2.PROCLIB also, if you have SYS2.PROCLIB defined in your system and have installed some of these compilers.  The version in this library will be located first, because the modification of the JES2 procedure places the DD statement for this library first in the concatenation.  If for any reason you still want to execute a similar procedure from the other library(s), you will need to modify the JES2 procedure to allow procedure library specification in JCL.  That is not difficult to do and is described at:  How can I execute catalogued procedures from a library other than SYS1.PROCLIB?


Updating to a later version of SYSCPK

Yes, I expect to continue to add compilers and related tools to the Language Compilers Available for MVS 3.8 page, and I will now be adding them to the SYSCPK image, at the same time.  Whenever I make an addition, I will place an entry on Changes and update the version number and date in the heading of this page.  If you want to update your copy of the SYSCPK volume image to the latest version, all you need to do is download the archive, extract the image, and (with Hercules/MVS not running, of course), use it to replace the previous version of the volume image pointed to in your Hercules' configuration file.

I have also added a SYSC.$HISTORY dataset on the volume to track updates to the volume's contents.  The entries in this dataset for the most recent updates are:

VV.MM __ Date __ _____________________________________________________
01.10 2017/09/12  1. Applied Tom Armstrong's ALGOL fix to IEX10
                  2. Added NCZ93205 (CBT V488, #152)
                  3. Added COMPCODE (CBT V?, #436)
                  4. Added PDSGEN (CBT V?, #357)
                  5. Added PDSPRINT (CBT V?, #316)
                  6. Added PDSPROGM (CBT V?, #316)
                  7. Added SYSREPRO (CBT V?, #316)
                  8. Added TAPEMAP (CBT V?, #299)
                  9. Added VSAMLIST (CBT OVERFLOW V466, #38)
                 10. Added VTOCLIST (CBT V?, #343)

Of course, in order to prevent this type of update from impacting your system, you must not modify or add to the contents of the SYSCPK volume.  If you do make modifications, you will need to maintain your own system to re-apply those modifications following an update of the volume image from this site.  It is not an impossible task, but is probably one best avoided.

I would especially elicit feedback if you have installed SYSCPK on your system and encountered any problems or see areas where clarification would be helpful.  This was a major task that has taken me several weeks of effort to complete.  It is certainly possible that there are minor problems that I have managed to miss, in spite of quite a bit of testing.  I would be grateful for the notification of any problems or difficulties you encounter.  Also, I believe that I have contemplated all possible issues in the design of the ISYSCPK program, but I do not have access to more than a few configurations of Hercules/MVS to test on and most of them are really quite similar.  So if you have a particular configuration that causes unexpected behavior of ISYSCPK, please let me know.

I hope that you have found my instructions useful.  If you have questions that I can answer to help expand upon the information I have included here, please don't hesitate to send them to me:

Return to Site Home Page

This page was last updated on September 20, 2017.
